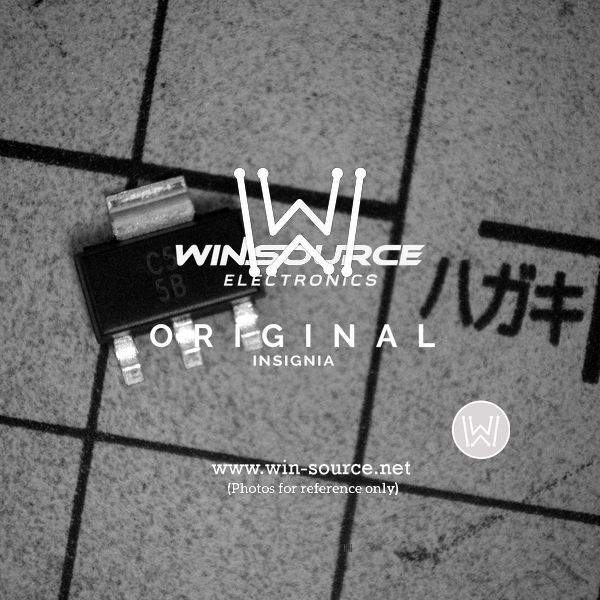

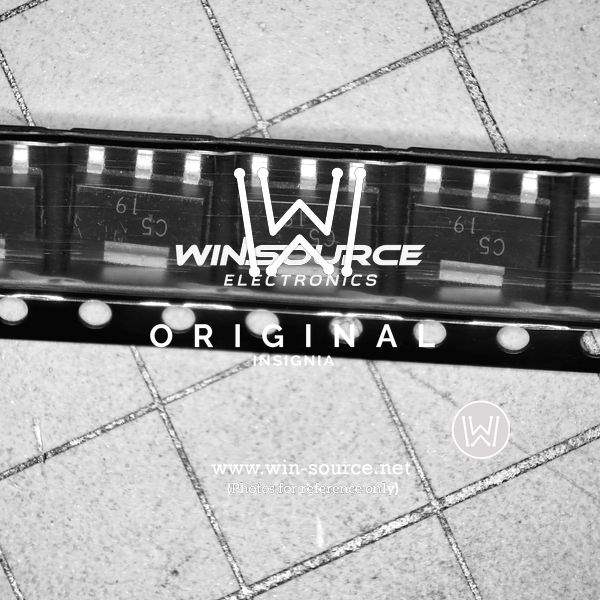

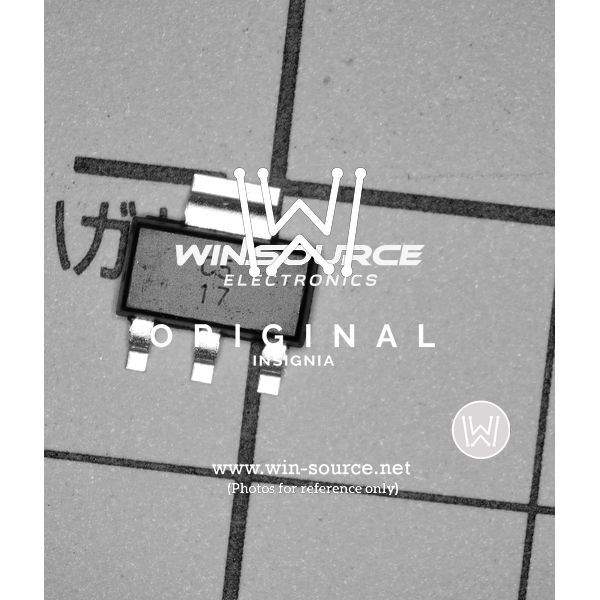

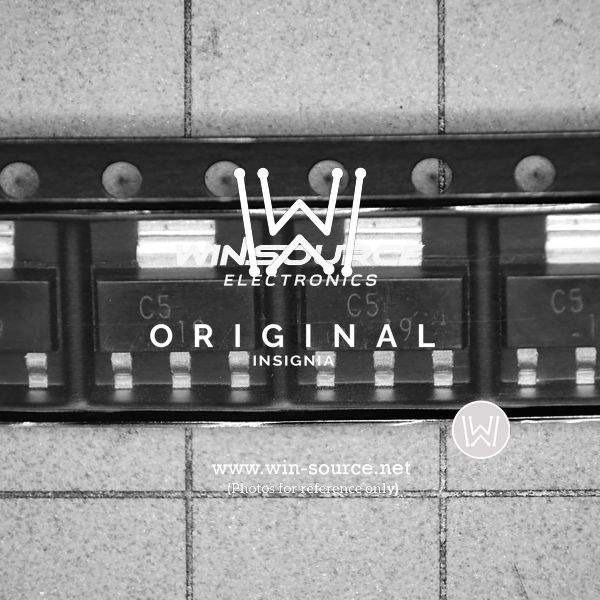

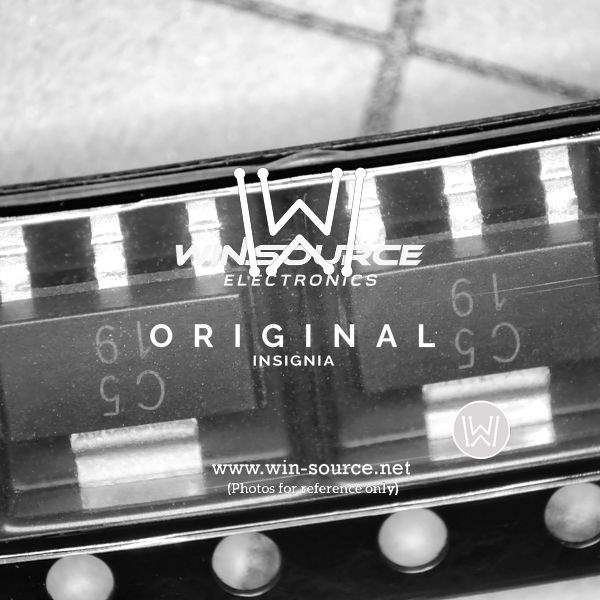

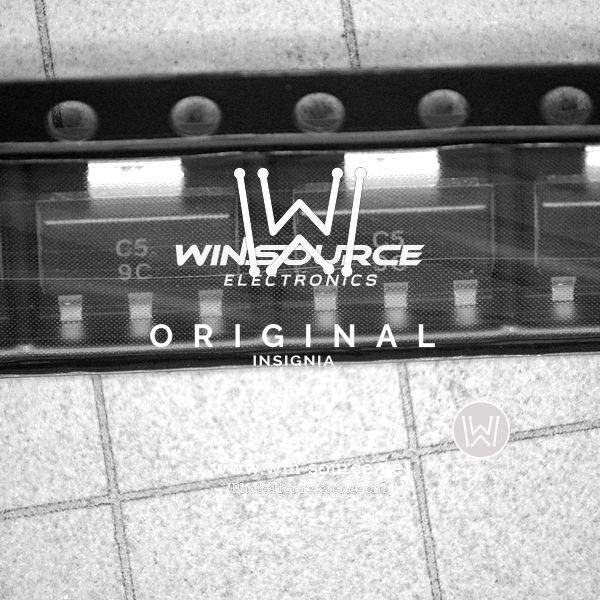

Texas Instruments UA78M05CDCYR Voltage Regulator

The UA78M05CDCYR is a fixed-voltage integrated-circuit voltage regulator designed by Texas Instruments, engineered to offer a stable 5V output. This regulator is part of the 78M05 series, renowned for their reliability and consistency in performance. The device comes in a compact SOT-223 package, which is ideal for space-constrained applications where efficient thermal dissipation is required.

With an ability to deliver a continuous output current of up to 500mA, the UA78M05CDCYR is perfectly suited for a wide range of electronic devices and projects. Its robust design ensures a steady 5V supply even under varying input voltages and fluctuating load conditions. This feature makes it an excellent choice for powering microcontrollers, sensors, and other sensitive electronic components that require a consistent voltage level to operate correctly.

The regulator boasts a low dropout voltage, which enhances its efficiency and allows it to operate effectively even in low-voltage situations. Additionally, it includes built-in protection features such as thermal shutdown and current limiting, safeguarding your electronic components from potential damage caused by over-current or excessive heat.

One of the key advantages of the UA78M05CDCYR is its ease of use. It requires minimal external components, which simplifies the design and reduces the overall bill of materials for your project. A simple input capacitor for stability and an output capacitor to improve transient response are typically all that's needed to utilize this regulator effectively.

Whether you are designing a consumer electronic product, an industrial control system, or a hobbyist project, the UA78M05CDCYR from Texas Instruments provides a reliable and straightforward solution for your 5V power supply needs. Its combination of performance, protection features, and ease of integration make it a versatile component for any application requiring a stable and efficient voltage regulator.

For detailed specifications and application notes, engineers and designers are encouraged to consult the official Texas Instruments datasheets and support documentation available on their website.
