Same model may have multiple batches, images only for reference.

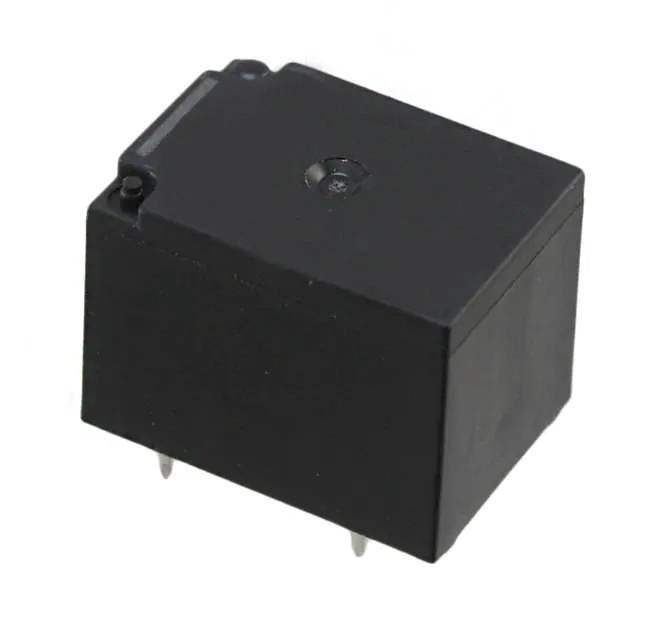

JS1-9V-F Real Image
Same model may have multiple batches, images only for reference.

JS1-9V-F

Part No JS1-9V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 9V / General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 225 Ohms
Base Product Number JS1-9V
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 922428-JS1-9V-F
Ultra Librarian 3D Model Ultra Librarian JS1-9V-F CAD Model

Description

The JS1-9V-F is a power relay from Panasonic's JS series.

  • Termination Style: PC Pin
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 9VDC
  • Coil Resistance: 225 Ohms
  • Coil Current: 40 mA
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC (max), 100VDC (max)
  • Seal: Fully Sealed
  • Operating Temperature: -40°C ~ 70°C
