Same model may have multiple batches, images only for reference.

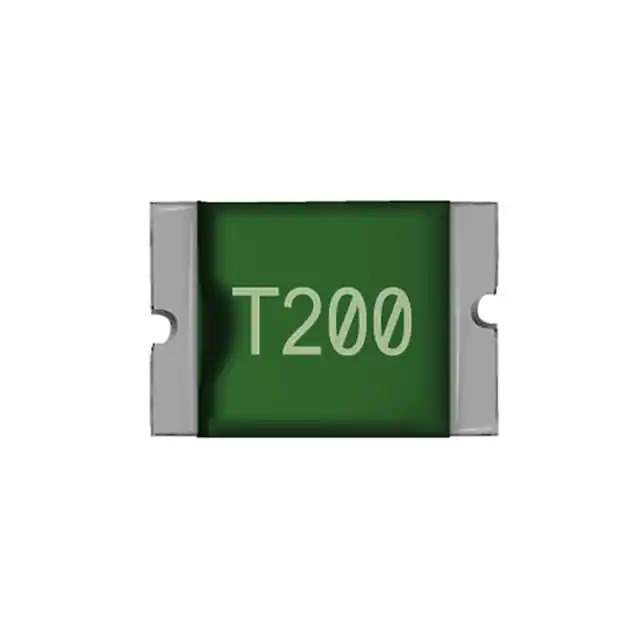

KMC3S100RY Real Image
Same model may have multiple batches, images only for reference.

KMC3S100RY

Part No KMC3S100RY
Manufacturer Thinking Electronic Industrial Co.,Ltd
Catalog PTC Resettable Fuses
Description Polymer PTC 1.0A Resettable Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Thinking Electronic Industrial Co.,Ltd
Series KMC
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 1 A
Current - Trip (It) 1.8 A
Current - Max 100 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 65 mOhms
Resistance - Post Trip (R1) (Max) 210 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.035" (0.88mm)
Approval Agency cUL, TUV, UL
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8504.50.4000
Win Source Part Number 1158023-KMC3S100RY
Ultra Librarian 3D Model Ultra Librarian KMC3S100RY CAD Model

Description

The KMC3S100RY is a polymeric PTC resettable fuse from the KMC series manufactured by Thinking Electronic Industrial Co.,Ltd.

  • Maximum Voltage Rating: 6V
  • Maximum Current Rating: 100A
  • Hold Current: 1A
  • Trip Current: 1.8A
  • Time to Trip: 300ms
  • Package: 1206 (3216 Metric)
  • Shape: Concave
  • Operating Temperature Range: -40°C to 85°C
  • Product Status: Active
  • Approvals: cUL, TUV, UL
