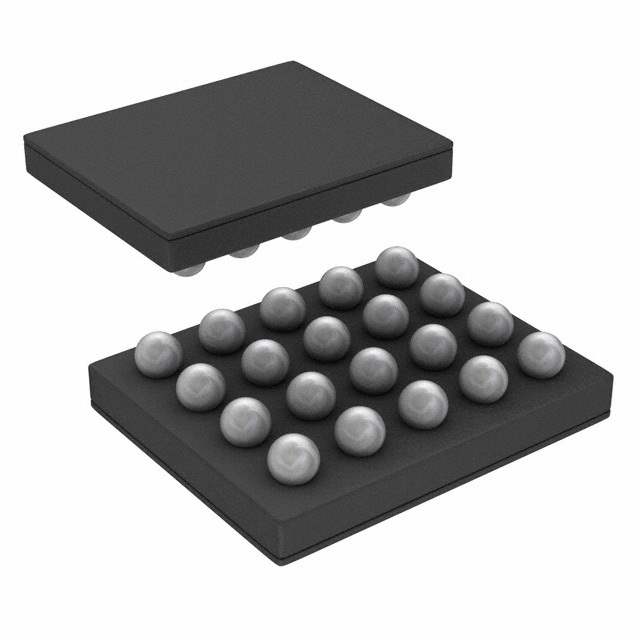

XC9306B05G0R-G Real Image
Same model may have multiple batches, images only for reference.

XC9306B05G0R-G

Part No XC9306B05G0R-G
Manufacturer Torex Semiconductor Ltd
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BCK BST ADJ WLP20-01
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr Torex Semiconductor Ltd
Package Tape & Reel
Product Status Obsolete
Function Step-Up/Step-Down
Output Configuration Positive
Topology Buck-Boost
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 5V
Current - Output 800mA (Switch)
Frequency - Switching 6MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-UFBGA, WLBGA
Supplier Device Package WLP-20-01 (1.94x2.15)
Base Product Number XC9306
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 939691-XC9306B05G0R-G
Ultra Librarian 3D Model Ultra Librarian XC9306B05G0R-G CAD Model

Description

The XC9306B05G0R-G is a DC-DC switching regulator from Torex Semiconductor Ltd.

  • Manufacturer: Torex Semiconductor Ltd
  • Output Voltage: adjustable
  • Maximum Input Voltage: 5.5V
  • Maximum Output Current: 800mA
  • Topology: buck-boost
  • Rectification: synchronous
  • Switching Frequency: 6MHz
  • Maximum Output Voltage: 5V
  • Mounting Type: surface mount
  • Package: 20-UFBGA, WLBGA
  • Status: obsolete
  • Standard Package: 6,000 pcs
