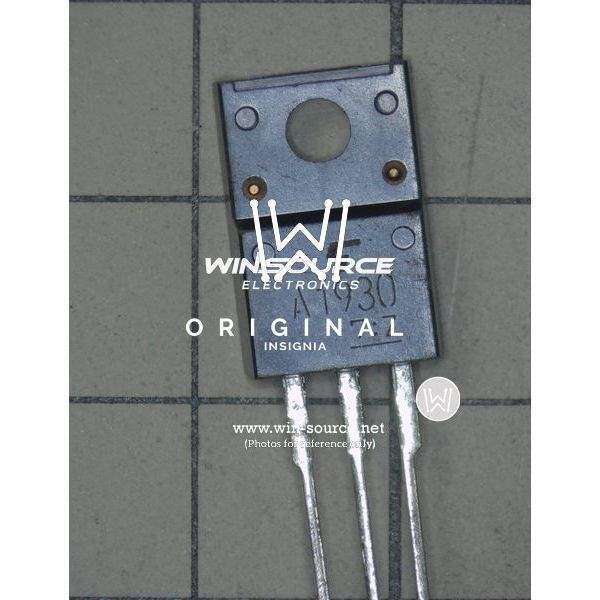

2SA1930

Part No 2SA1930
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors (BJT) - Single
Description TRANS PNP 180V 2A TO220NIS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Bulk
Transistor Polarity PNP
Maximum Current Collector 2A
VCEO Maximum Collector-Emitter Breakdown Voltage 180V
Max Vce (sat) 1V @ 100mA, 1A
Collector Cut-off Current(Max) 5μA (ICBO)
Typical Gain (hFE) (Min) 100 @ 100mA, 5V
Maximum Power Dissipation 2W
Frequency - Transition 200MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-220NIS
Win Source Part Number 075397-2SA1930
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SA1930 CAD Model

Description

The 2SA1930 from Toshiba Semiconductor and Storage is a single bipolar junction transistor suited for engineers building or maintaining discrete analog and switching stages where dependable transistor behavior and established sourcing history matter. In practice, parts in this category are commonly considered for amplification, signal conditioning, driver stages, and general-purpose power or control circuitry, depending on the exact circuit requirements and verified datasheet limits. Its value is typically strongest in repair, legacy equipment support, and design evaluation workflows that rely on known Toshiba transistor families. For new designs, engineers should carefully confirm current manufacturer support, package details, and electrical characteristics before qualification. The lifecycle status for 2SA1930 is currently information not available, so supply continuity should be reviewed with authorized channels. RoHS compliance information is also not available from the provided data. Design, compliance, and procurement teams should verify the latest datasheet, material declaration, and manufacturer confirmation before production release.
