The 3SK291 is an N-channel dual-gate MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-frequency applications, manufactured by Toshiba Semiconductor and Storage. Dual-gate MOSFETs are particularly useful in RF (Radio Frequency) circuits where gain control and low noise are critical requirements.

Applications

• RF amplifiers
• Mixers
• Oscillators
• TV tuners
• Satellite receivers
• Spectrum analyzers

Features

• N-channel dual-gate MOSFET structure
• High forward transfer admittance (Yfs)
• Low feedback capacitance (Crss)
• Low noise figure (NF)
• High power gain
• Surface mount package

Benefits

• Enables high-gain, low-noise amplification of RF signals
• Improves signal-to-noise ratio in sensitive receiver circuits
• Simplifies gain control and reduces unwanted oscillations
• Facilitates miniaturization of RF equipment

Additional Details

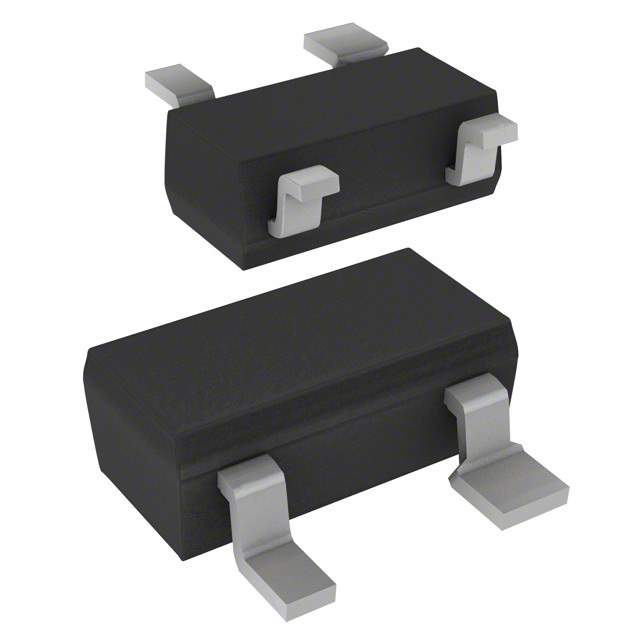

Key specifications for the 3SK291 include drain-source voltage, gate-source voltage, drain current, power dissipation, forward transfer admittance (Yfs), input capacitance, output capacitance, and noise figure. The dual-gate structure allows for independent control of gain, making it suitable for AGC (Automatic Gain Control) applications. This transistor is specifically designed for low-voltage, low-current operation. The package is typically a small surface mount type for high-density PCB layouts. It is commonly used in the front-end stages of RF receivers to amplify weak signals while minimizing added noise.
