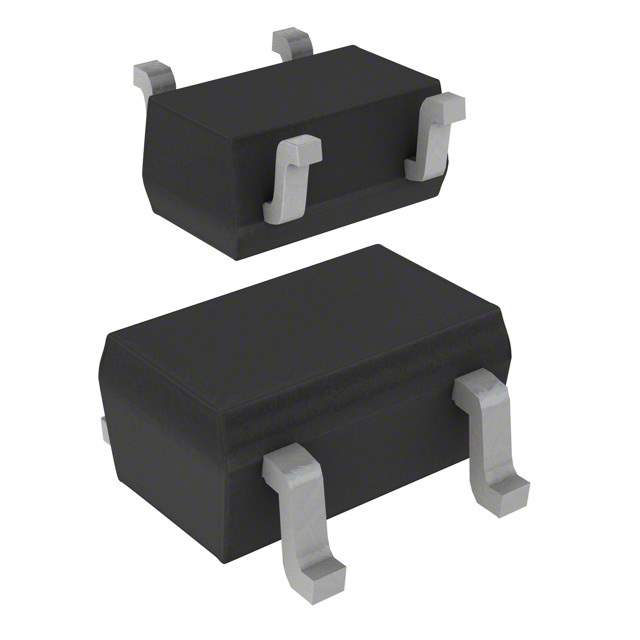

The 3SK294 is a N-channel dual gate MOS field effect transistor (MOSFET) from Toshiba Semiconductor and Storage, designed for high-frequency applications. These dual-gate MOSFETs are commonly used in RF (Radio Frequency) circuits due to their gain control capabilities and low noise characteristics. They are used in applications where amplifying weak signals while minimizing added noise is critical.

Applications

• RF Amplifiers
• Mixers
• Oscillators
• TV tuners
• Satellite Receivers
• Spectrum Analyzers

Features

• N-channel, dual-gate MOSFET structure
• High forward transfer admittance (Yfs)
• Low feedback capacitance (Crss)
• Low noise figure (NF)
• High power gain
• Surface mount package

Benefits

• Enables amplification of weak RF signals with minimal added noise
• Improves signal-to-noise ratio in receiver circuits
• Facilitates gain control and reduces unwanted oscillations
• Suited for miniaturized RF equipment

Additional Details

Typical electrical characteristics include drain-source voltage, gate-source voltage, drain current, forward transfer admittance (Yfs), input capacitance, output capacitance, and noise figure. The dual-gate structure allows for AGC (Automatic Gain Control) applications, by adjusting the voltage on the second gate. The device is designed for low voltage and low current operation, to minimize power consumption. Surface mount packages enable compact circuit designs. Specific applications include front-end amplifiers in communication receivers and test equipment. Proper biasing is essential to optimize the device's performance.
