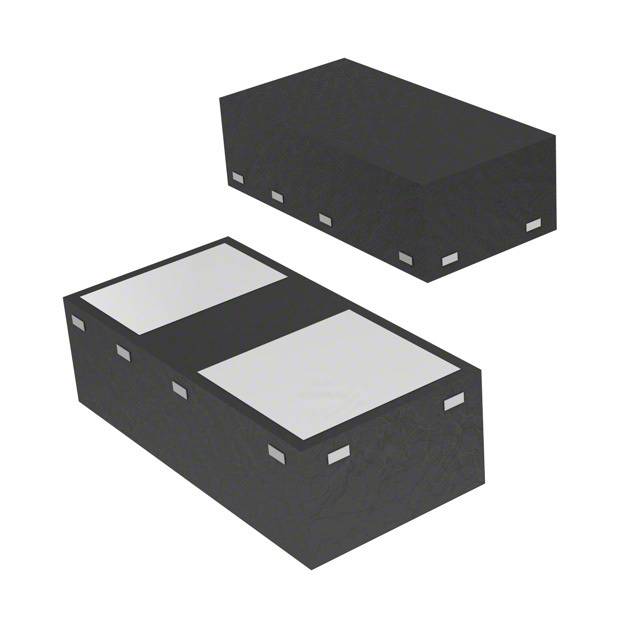

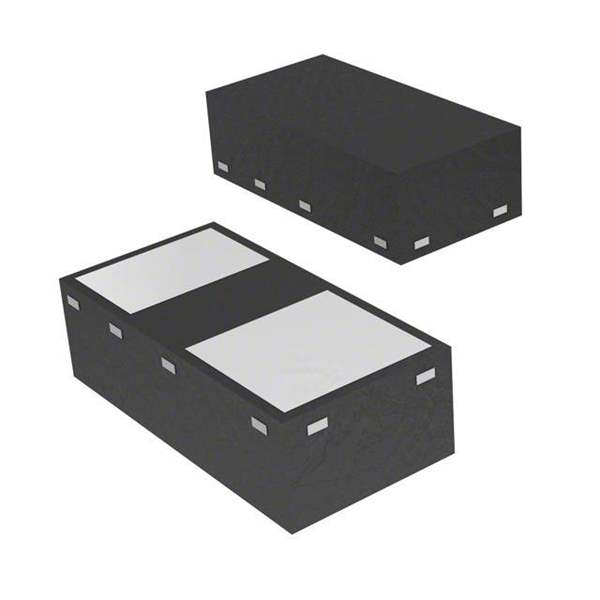

CCS15S30,L3F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

CCS15S30,L3F

Part No CCS15S30,L3F
Manufacturer Toshiba Semiconductor and Storage
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1.5A CST2C
Datasheet
CCS15S30,L3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 400mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 30V
Capacitance @ Vr, F 200pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package CST2C
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1028086-CCS15S30,L3F
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CCS15S30,L3F CAD Model

Description

Toshiba Semiconductor and Storage CCS15S30,L3F is a Schottky diode that is mounted on SMD (SMT).

  • Voltage DC Reverse (Vr) (Max): 20V
  • Average Rectified Current (Io): 1.5A
  • Forward Voltage (Vf) (Max) @ If: 400mV @ 1A
  • Reverse Leakage Current @ Vr: 500μA @ 30V
  • Capacitance of the Diode @ Vr, F: 200pF @ 0V, 1MHz
  • Speed (Frequency): fast recovery = 200mA (Io)
  • Maximum Operating Temperature: 125°C (Max)
  • Category: discrete semiconductor products
  • Package: CST2C
  • Supply and Demand Status: sufficient
