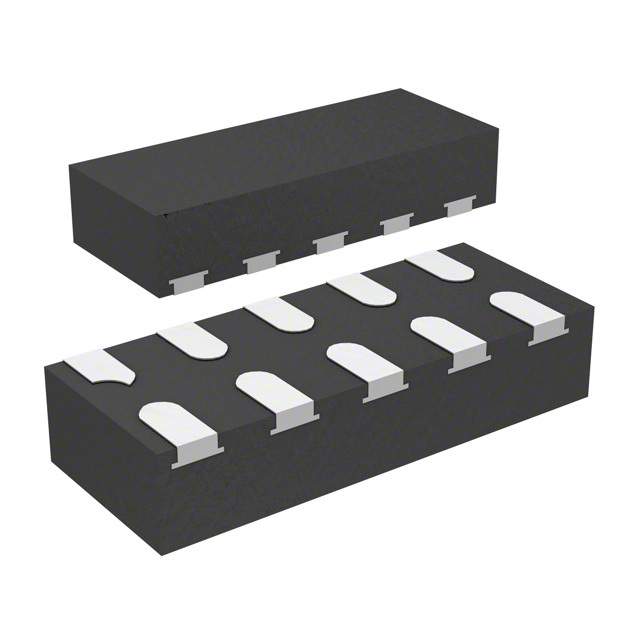

Same model may have multiple batches, images only for reference.
DF10G7M1N,LF Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

DF10G7M1N,LF

Part No DF10G7M1N,LF
Manufacturer Toshiba Semiconductor and Storage
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC 10DFN
Datasheet
DF10G7M1N,LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V (Typ)
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.3pF @ 1MHz
Mounting SMD (SMT)
Case / Package 10-DFN (2.5x1)
Win Source Part Number 1032853-DF10G7M1N,LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DF10G7M1N,LF CAD Model

Description

The Toshiba Semiconductor and Storage DF10G7M1N,LF is a steering (rail to rail) circuit protection product with 4 unidirectional channels.

  • Manufacturer: Toshiba Semiconductor and Storage
  • Type: steering (rail to rail)
  • Application: HDMI
  • Channels: 4 unidirectional
  • Package: 10-DFN (2.5x1)
  • Mounting: SMD (SMT)
  • Stand-Off Voltage: 5V (max)
  • Minimum Breakdown Voltage: 6V
  • Max Clamping Voltage: 12V (typ)
  • Peak Pulse Current: 1A (8/20μs)
  • Capacitance: 0.3pF @ 1MHz
