The DF2S20FS is a Transient Voltage Suppressor (TVS) diode manufactured by Toshiba Semiconductor and Storage. It is designed to protect sensitive electronic components from voltage transients caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning surges. It's used in a variety of applications to enhance the robustness and reliability of electronic devices.

Applications:

• Protection of data lines in communication equipment
• ESD protection for USB and other I/O interfaces
• Surge protection in industrial control systems
• Overvoltage protection for automotive electronics
• Protection of sensitive circuits in consumer electronics

Features:

• Low clamping voltage
• Fast response time
• Small surface mount package
• High surge capability
• Low leakage current

Benefits:

• Protects sensitive electronic components from damage caused by voltage transients
• Improves system reliability and prevents downtime
• Extends the lifespan of electronic equipment
• Reduces the risk of component failure
• Meets industry standards for ESD and surge protection

Detailed Specifications:

The key specifications of the DF2S20FS typically include the following (always consult the datasheet for accurate values):

• Reverse Stand-Off Voltage: Around 20V, indicating the maximum voltage that can be applied continuously without triggering conduction.
• Clamping Voltage: This is the voltage to which the diode limits during a surge event, protecting the connected circuitry. It is current-dependent and typically specified at a given surge current level.
• Peak Pulse Current: Represents the maximum surge current that the device can withstand without damage. This is often tested according to industry standards such as IEC 61000-4-2 (ESD) and IEC 61000-4-5 (Surge).
• Junction Capacitance: Important, especially for high-speed data lines. The DF2S20FS is designed to have a relatively low capacitance to minimize signal degradation.

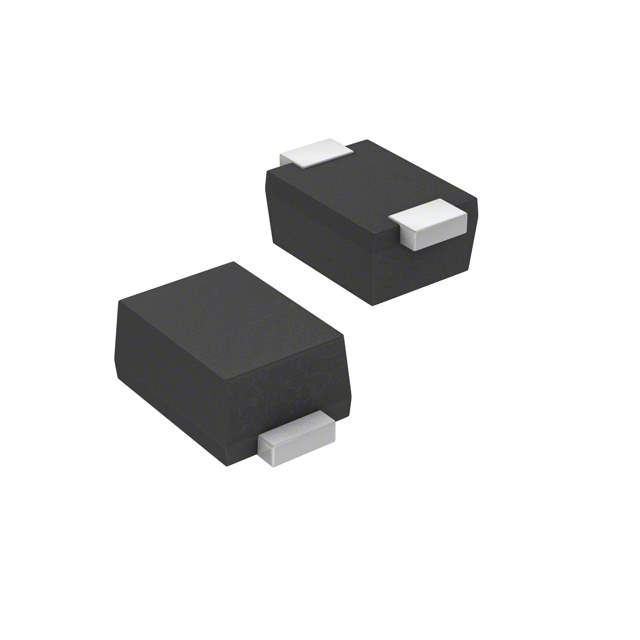

• Package: Generally available in a small surface mount package such as SOD-323, allowing for compact designs.

The DF2S20FS is a reliable choice for protecting sensitive electronics from voltage transients, ensuring greater system robustness and longevity.
