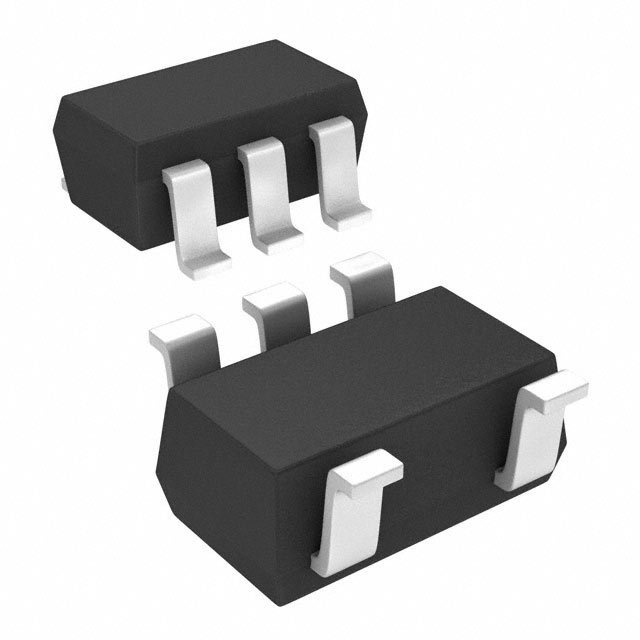

Same model may have multiple batches, images only for reference.
DF5A3.6F(TE85L,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

DF5A3.6F(TE85L,F)

Part No DF5A3.6F(TE85L,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog TVS - Diodes
Description TVS DIODE 1VWM SMV
Datasheet
DF5A3.6F(TE85L,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 1V
Minimum Breakdown Voltage 3.4V
Applications General Purpose
Capacitance @ Frequency 110pF @ 1MHz
Mounting SMD (SMT)
Case / Package SMV
Win Source Part Number 1033045-DF5A3.6F(TE85L,F)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DF5A3.6F(TE85L,F) CAD Model

Description

The DF5A3.6F(TE85L,F) is a Zener diode manufactured by Toshiba Semiconductor and Storage.

  • Maximum Capacitance: 110pF @ 1MHz
  • Channels: 4 Unidirectional
  • Application: General Purpose
  • Mounting: SMD (SMT)
  • Packaging: SMV
  • Stand-off Voltage: 1V
  • Minimum Breakdown Voltage: 3.4V
  • Popularity: Medium
  • Supply and Demand Status: Balanced
