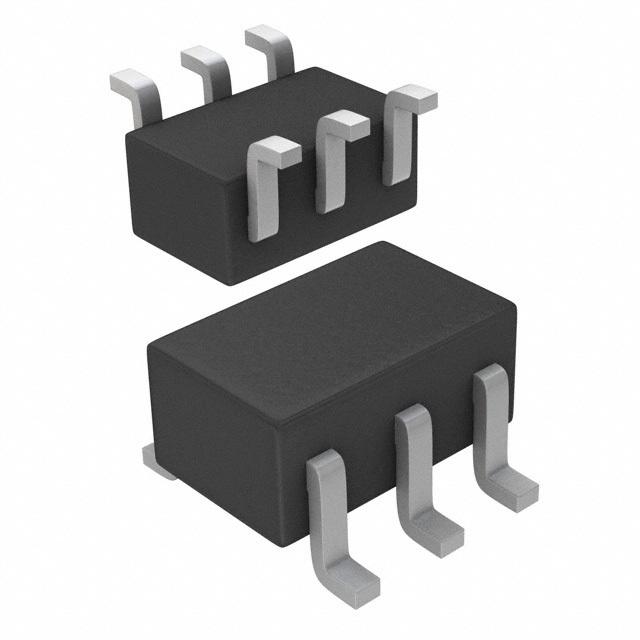

RN49A1(T5L,F,T) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

RN49A1(T5L,F,T)

Part No RN49A1(T5L,F,T)
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS NPN/PNP PREBIAS 0.2W US6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity 1 NPN, 1 PNP - Pre-Biased (Dual)
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 2.2k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 80 @ 10mA, 5V
Max Vce (sat) 300mV @ 250μA, 5mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 200MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package US6
Win Source Part Number 101958-RN49A1(T5L,F,T)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RN49A1(T5L,F,T) CAD Model

Description

The Toshiba Semiconductor and Storage RN49A1(T5L,F,T) is a pre-biased dual NPN and PNP transistor.

  • Collector-Emitter Breakdown Voltage: 50V
  • Maximum Collector Current: 100mA
  • Frequency Transition: 200MHz
  • Typical Gain: 80 @ 10mA and 5V
  • Maximum Power Dissipation: 200mW
  • Collector Cut-Off Current: 100nA
  • Packaged: US6 case
  • Mounted: SMD (SMT)
  • Resistor Base (R1): 2.2k ohms
  • Resistor Emitter Base (R2): 47k ohms
  • Status: obsolete (EOL) but still available in the market
