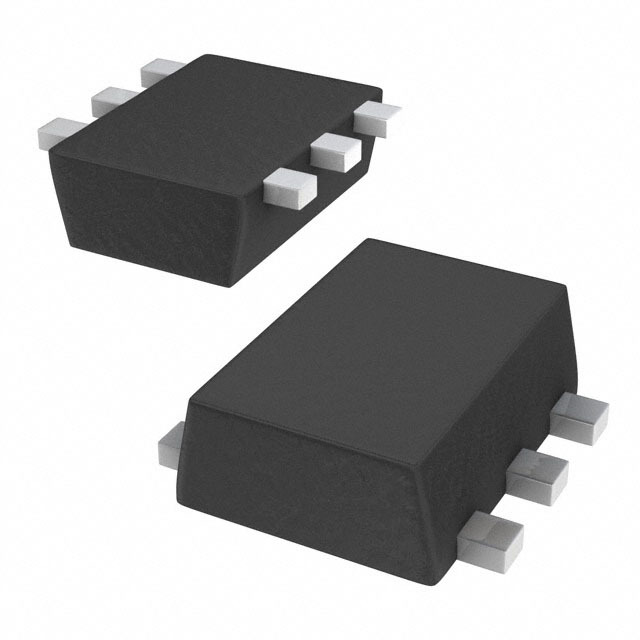

This electronic component is an N-channel MOSFET transistor manufactured by Toshiba Semiconductor and Storage.

• Part Number: 1277963-SSM6K404TU,LF
• Mounting: Surface mount device
• Package: 6-SMD, flat leads
• Maximum Drain to Source Voltage (Vdss): 20V
• Continuous Drain Current (Id): 3A @ 25°C
• Rds On (Max) @ Id, Vgs: 55mOhm @ 2A, 4V
• Vgs(th) (Max) @ Id: 1V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs: 5.9 nC @ 4V
• Input Capacitance (Ciss) (Max) @ Vds: 400 pF @ 10V
• Temperature Range: 150°C
• Maximum Power Dissipation: 500mW (Ta)
