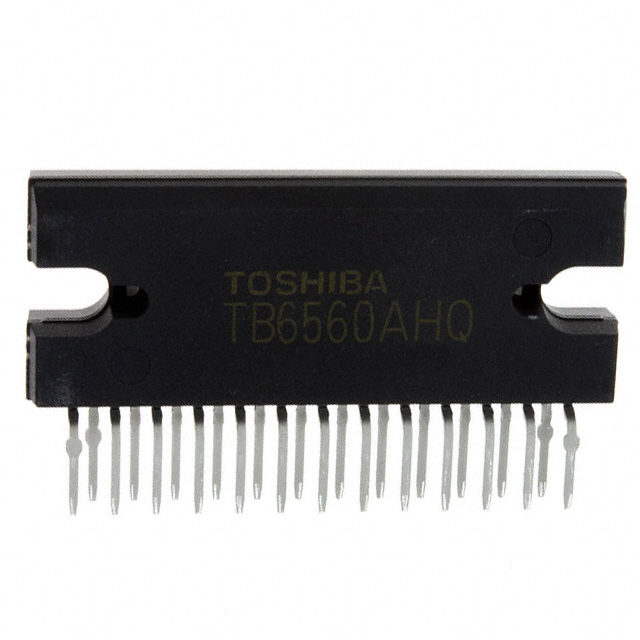

TB6560AHQ Toshiba Semiconductor and Storage TB6560AHQ real image7041 TB6560AHQ real image
TB6560AHQ Toshiba Semiconductor and Storage TB6560AHQ real image7041 TB6560AHQ real image
Same model may have multiple batches, images only for reference.

TB6560AHQ

Part No TB6560AHQ
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 25HZIP
Datasheet
TB6560AHQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Tray
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Step Resolution 1, 1/2, 1/4, 1/8, 1/16
Applications General Purpose
Output Current 3A
Supply Voltage - Operating 4.5 V to 5.5 V
Voltage - Load 4.5 V to 34 V
Temperature Range - Operating -30°C to 85°C (TA)
Mounting Through Hole
Case / Package 25-HZIP
Win Source Part Number 355608-TB6560AHQ
Family Name TB6560AHQ
Introduction Date February 14, 2008
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 504
Ultra Librarian 3D Model Ultra Librarian TB6560AHQ CAD Model

Description

The TB6560AHQ is a fully integrated driver and power stage control MOSFET manufactured by Toshiba Semiconductor and Storage.

  • Supply and Demand Status: balanced.
  • Features: highly reliable and has a low on-resistance.
  • Suitable for: use in various applications such as stepper motor control, CNC machines, and robotics.
