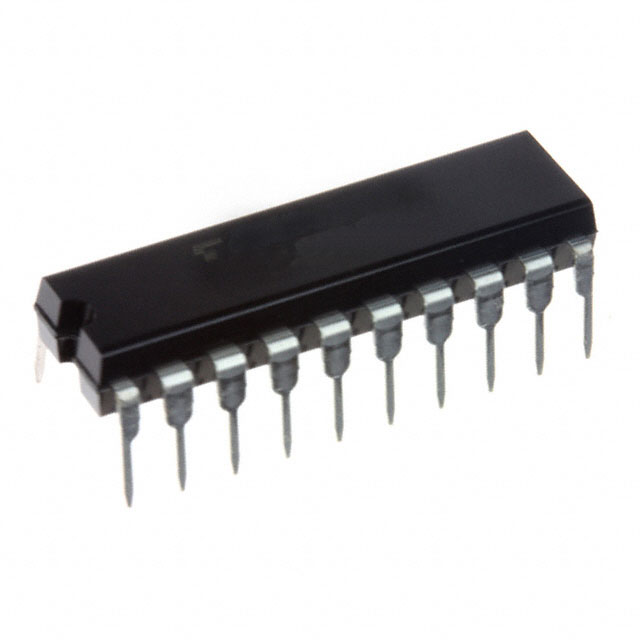

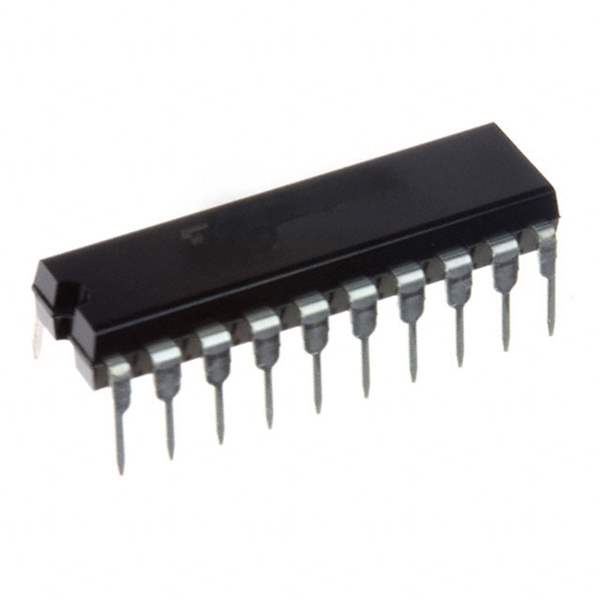

The TC74AC245P is an octal bus transceiver manufactured by Toshiba Semiconductor and Storage. As part of the Advanced CMOS (AC) logic family, it provides high-speed performance with low power consumption. The device is designed for asynchronous two-way communication between data buses. The TC74AC245P features non-inverting outputs and is housed in a through-hole DIP (Dual In-line Package), offering ease of use in prototyping and traditional circuit board designs.

Applications:

• Data Bus Interfacing: Connects different data buses for seamless communication.
• Memory System Buffering: Enhances the drive capability of memory interfaces.
• I/O Port Multiplexing: Expands the available I/O ports in embedded systems.
• Bidirectional Data Transmission: Facilitates two-way data transfer between devices.
• Signal Amplification: Boosts signal strength for reliable data transmission over longer distances.

Features:

• Octal Transceiver: Eight independent channels for parallel data transfer.
• Non-Inverting Logic: Maintains the original polarity of the input signal.
• High-Speed Operation: Ensures fast data transfer rates.
• Low Quiescent Current: Minimizes power consumption in standby mode.
• Wide Operating Voltage Range: Supports supply voltages from 2V to 6V.
• Three-State Outputs: Allows for bus isolation and sharing.
• DIP Package: Easy to prototype and breadboard with.

Benefits:

• Improved System Performance: Fast propagation delays minimize data transfer latency.
• Reliable Data Transmission: Non-inverting outputs preserve signal integrity.
• Energy Efficiency: Low power consumption reduces overall system power requirements.
• Versatile Application: Wide voltage range supports various system configurations.
• Simplified Bus Management: Three-state outputs enable efficient bus sharing and isolation.
• Easy Prototyping: DIP package allows for easy experimentation and development.

The TC74AC245P functions as either a buffer or a transceiver, controlled by the direction control (DIR) input. When DIR is high, data flows from the A inputs to the B outputs. Conversely, when DIR is low, data flows from the B inputs to the A outputs. The output enable (OE) input determines whether the outputs are active or in a high-impedance state. A low level on OE enables the outputs, while a high level disables them, effectively isolating the device from the bus. The device operates over a temperature range of -40°C to +85°C. For detailed information on propagation delays, input/output characteristics, and other specifications, refer to the official Toshiba datasheet for the TC74AC245P.
