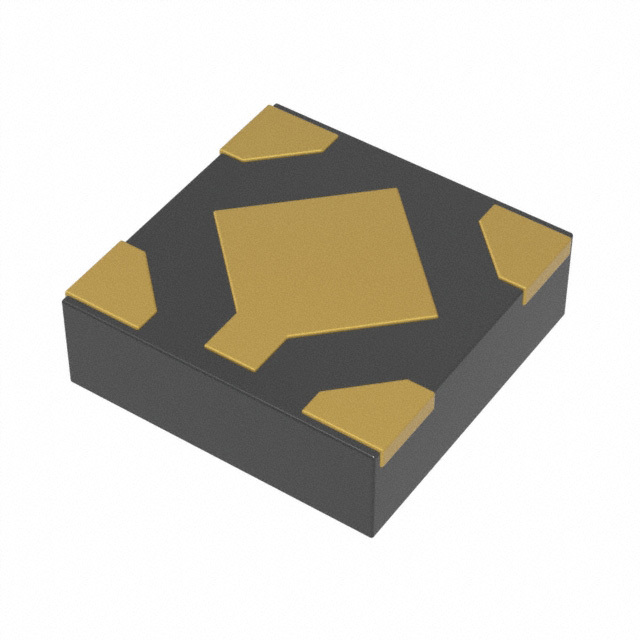

Same model may have multiple batches, images only for reference.
TCR5AM08,LF Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TCR5AM08,LF

Part No TCR5AM08,LF
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 0.8V 500MA 5DFNB / Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 5-DFNB (1.2x1.2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Toshiba Semiconductor and Storage
Series TCR5AM
Package Tape & Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 0.8V
Voltage Dropout (Max) 0.22V @ 500mA
Current - Output 500mA
Current - Quiescent (Iq) 55 µA
Current - Supply (Max) 68 µA
PSRR 70dB ~ 40dB (1kHz ~ 10Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C ~ 85°C (TJ)
Mounting SMD (SMT)
Package / Case 4-XDFN Exposed Pad
Supplier Device Package 5-DFNB (1.2x1.2)
Base Product Number TCR5AM08
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names TCR5AM08LFCT,TCR5AM08LF,TCR5AM08LFDKR,TCR5AM08,LF(S,TCR5AM08LFTR
Standard Package 5,000
Win Source Part Number 1098685-TCR5AM08,LF
Ultra Librarian 3D Model Ultra Librarian TCR5AM08,LF CAD Model

Description

The TCR5AM08LF is a fixed output voltage regulator from Toshiba Semiconductor and Storage.

  • Series: TCR5AM
  • Current Output: 500mA
  • Voltage Input (Max): 5.5V
  • Voltage Output (Min/Fixed): 0.8V
  • Package/Case: 4-XDFN exposed pad
  • Control Feature: Enable
  • Quiescent Current: 55 µA
  • Supply Current (Max): 68 µA
  • Voltage Dropout: 0.22V @ 500mA
  • Protection Features: Over current, over temperature, and under voltage lockout (UVLO)
  • PSRR: 70dB ~ 40dB (1kHz ~ 10Hz)
  • Application: Test & measurement, power management, industrial, consumer electronics, portable devices, automotive, and avionics applications
