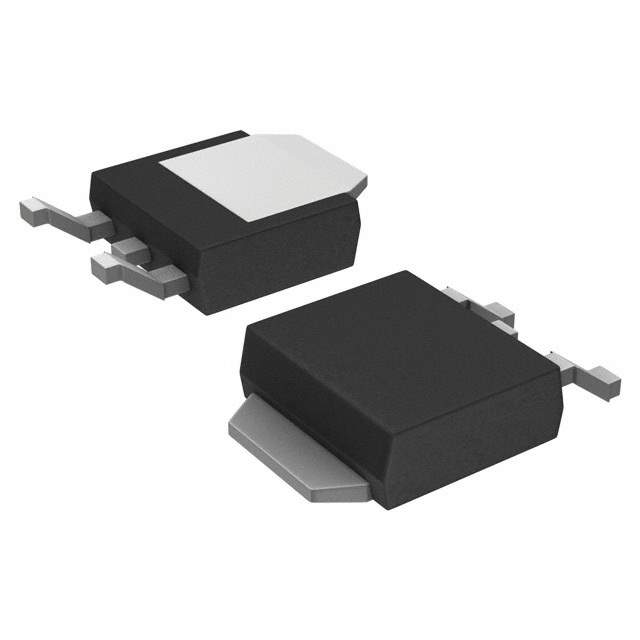

The TK11P65W is an N-channel power MOSFET manufactured by Toshiba Semiconductor and Storage. It's designed for high-efficiency switching applications, featuring low on-resistance and fast switching speeds. The '65' likely indicates a voltage rating of 650V.

Applications:

• Switch Mode Power Supplies (SMPS): Used as a switching element in SMPS circuits for various applications.
• Power Factor Correction (PFC) Circuits: Implementing PFC in power supplies to improve energy efficiency.
• DC-DC Converters: Used in DC-DC converters for voltage regulation and power conversion.
• Motor Control: Driving motors in various applications, such as industrial drives and consumer appliances.
• Inverters: Used in inverters for converting DC power to AC power.

Features:

• N-Channel MOSFET: An N-channel enhancement mode MOSFET.
• High Voltage Rating: Rated for operation at 650V.
• Low On-Resistance (RDS(on)): Minimizes power losses due to conduction.
• Fast Switching Speed: Enables high-frequency switching operation.
• Avalanche Rated: Designed to withstand avalanche breakdown events.
• Integrated Gate Resistor: May include an integrated gate resistor for improved EMI performance.
• RoHS Compliant: Compliant with RoHS environmental standards.

Benefits:

• High Efficiency: Low on-resistance minimizes power losses, improving energy efficiency.
• High Power Density: Enables compact and high-power density designs.
• Reliable Operation: Designed for reliable operation in demanding applications.
• Simplified Design: Integrated features simplify circuit design.
• Environmentally Friendly: RoHS compliance ensures environmental friendliness.

Additional Details:

The TK11P65W is typically available in a TO-220 or similar through-hole package, facilitating heat dissipation. Important parameters to consider are the gate charge (Qg), drain current (Id), and junction temperature (Tj). Consult the official Toshiba datasheet for precise specifications, thermal resistance values, and safe operating area (SOA) curves.
