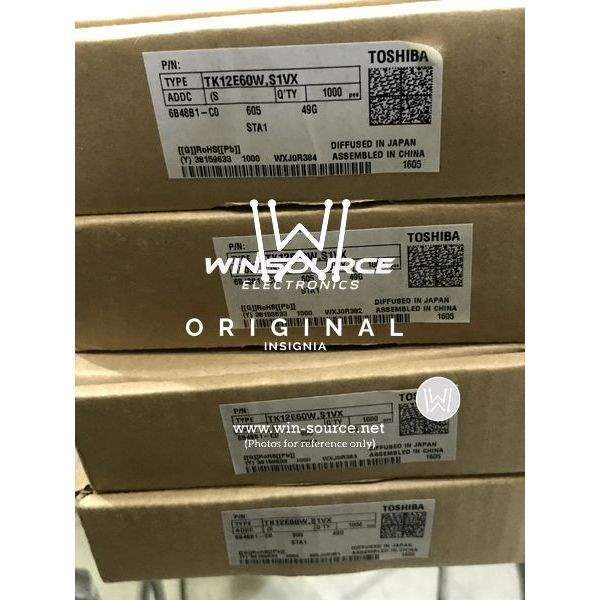

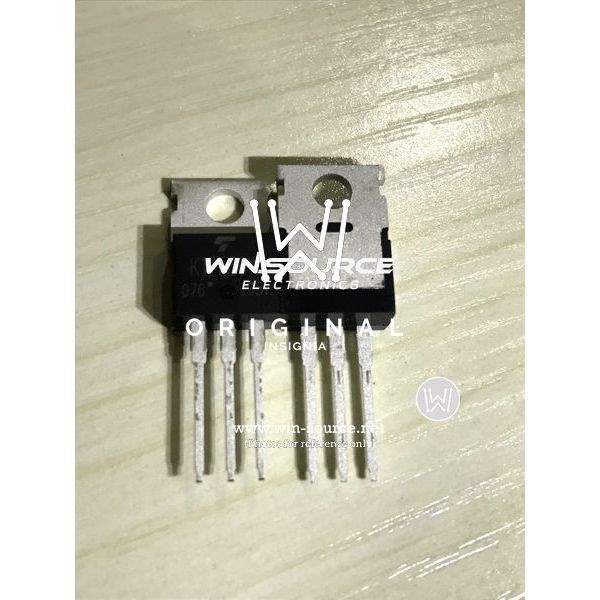

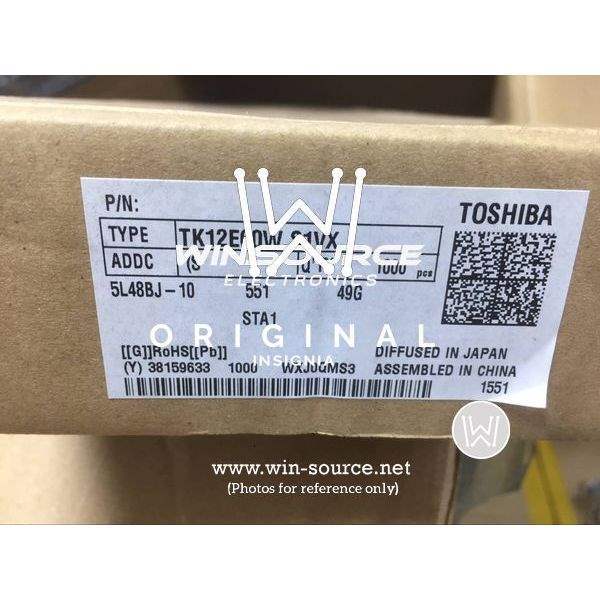

TK12E60W,S1VX Toshiba Semiconductor and Storage TK12E60W,S1VX real image TK12E60W,S1VX label picture TK12E60W,S1VX label picture 2
Same model may have multiple batches, images only for reference.
TK12E60W,S1VX Toshiba Semiconductor and Storage TK12E60W,S1VX real image TK12E60W,S1VX label picture TK12E60W,S1VX label picture 2
TK12E60W,S1VX Toshiba Semiconductor and Storage TK12E60W,S1VX real image TK12E60W,S1VX label picture TK12E60W,S1VX label picture 2
Same model may have multiple batches, images only for reference.

TK12E60W,S1VX

Part No TK12E60W,S1VX
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N CH 600V 11.5A TO-220
Datasheet
TK12E60W,S1VX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 11.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3.7V @ 600μA
Max Gate Charge 25nC @ 10V
Max Input Capacitance 890pF @ 300V
Maximum Gate-Source Voltage ±30V
FET Feature Super Junction
Power Dissipation (Max) 110W (Tc)
Maximum Rds On at Id,Vgs 300 mOhm @ 5.8A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-220
Dimension TO-220-3
Win Source Part Number 1050217-TK12E60W,S1VX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TK12E60W,S1VX CAD Model

Description

The TK12E60W,S1VX is a reliable MOSFET component that is manufactured by Toshiba Semiconductor and Storage.

  • Supplier: Win Source
  • Popularity: medium-popularity
  • Operating Temperature Range: 150°C (TJ)
  • Supply Voltage: 10V
  • Category: discrete semiconductor products
  • Status: active product
  • Manufacturer: Toshiba Semiconductor and Storage
