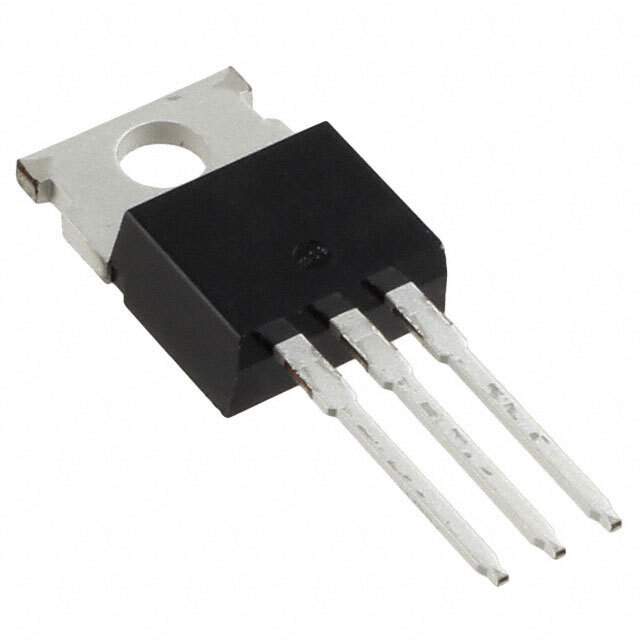

The TK34E10N1 is an N-channel Power MOSFET from Toshiba Semiconductor and Storage. This MOSFET is designed for high-efficiency switching applications, offering low on-resistance and fast switching speeds.

Applications:

• DC-DC Converters: Used in voltage regulation and power management circuits.
• Motor Control: Employed in controlling the speed and torque of various types of motors.
• Power Supplies: Integrated into AC-DC and DC-DC power supplies for efficient power conversion.
• LED Lighting: Used in LED drivers for brightness control and power efficiency.
• Battery Management Systems (BMS): Employed in battery charging and discharging circuits for optimal battery performance.

Features:

• N-Channel MOSFET: Enhances the efficiency and performance of switching circuits.
• Low On-Resistance (RDS(on)): Minimizes power loss during conduction, improving overall efficiency. Typical RDS(on) value is around 10 mΩ.
• High Drain Current (ID): Supports high current loads, making it suitable for demanding applications. Rated for continuous drain current of 34A.
• Fast Switching Speed: Enables quick transitions between ON and OFF states, reducing switching losses.
• Avalanche Rated: Provides robustness against voltage spikes and transient conditions.
• Surface Mount Package: Facilitates easy integration into circuit boards, typically available in a DPAK package.
• Low Gate Charge (Qg): Reduces the gate drive requirements, simplifying the driving circuitry.

Benefits:

• Improved Efficiency: Low on-resistance minimizes power dissipation, resulting in higher energy efficiency.
• Enhanced Reliability: Robust design ensures stable operation under various operating conditions.
• Simplified Circuit Design: Low gate charge simplifies the gate drive requirements.
• Reduced Heat Generation: Lower power dissipation reduces the need for extensive heat sinking.
• Compact Size: Surface mount package allows for compact and space-saving designs.

Additional Details:

The TK34E10N1 features a drain-source voltage (VDS) rating of 100V, making it suitable for applications with moderate voltage requirements. The gate-source voltage (VGS) is typically rated at ±20V. This MOSFET is designed to operate over a wide temperature range, typically from -55°C to +175°C. It is also RoHS compliant, ensuring it meets environmental standards. The device is commonly used in synchronous rectification, load switching, and various power management applications where efficiency and reliability are critical.
