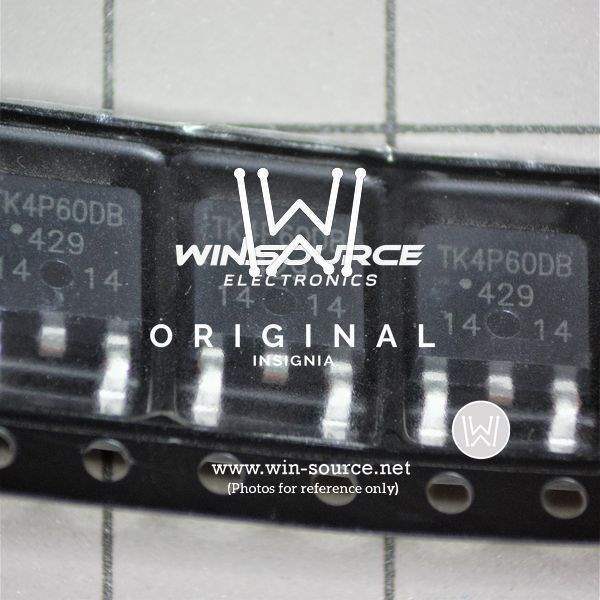

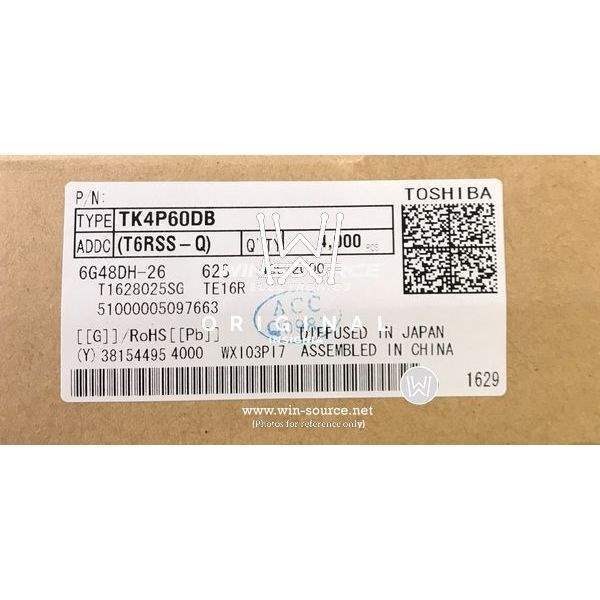

Same model may have multiple batches, images only for reference.

TK4P60DB(T6RSS-Q)

Name: TK4P60DB(T6RSS-Q)
Brand: Toshiba Semiconductor and Storage
SKU: 813177
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TK4P60DB(T6RSS-Q)
Manufacturer	Toshiba Semiconductor and Storage
Catalog	FETs - Single
Description	MOSFET N-CH 600V 3.7A DPAK-3
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Toshiba Semiconductor and Storage
Packaging	Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) at 25°C	3.7A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	2Ohm at 1.9A, 10V
Vgs(th) (Maximum) at Id	4.4V at 1mA
Gate Charge (Qg) (Maximum) at Vgs	11nC at 10V
Maximum Vgs	±30V
Input Capacitance (Ciss) (Maximum) at Vds	540pF at 25V
Power Dissipation (Maximum)	80W (Tc)
Temperature Range - Operating	150°C
Mounting Style	SMD
Supplier Device Package	D-Pak
Manufacturer Package	TO-252-3, DPak (2 Leads + Tab), SC-63
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813180-TK4P60DB(T6RSS-Q)
Ultra Librarian 3D Model	Ultra Librarian TK4P60DB(T6RSS-Q) CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TK4P60DB(T6RSS-Q) is an N-channel MOSFET from Toshiba Semiconductor and Storage.

Drain to Source Voltage: 600V
Power Dissipation: 80W (Tc)
Maximum Rds On: 2Ohm @ 1.9A, 10V
Gate Charge: 11nC @ 10V
Input Capacitance: 540pF @ 25V
Continuous Drain Current: 3.7A @ 25°C
Vgs(th): 4.4V @ 1mA
Maximum Vgs: ±30V
Package: D-Pak
Mounting Style: SMD
Operating Temperature Range: 150°C
