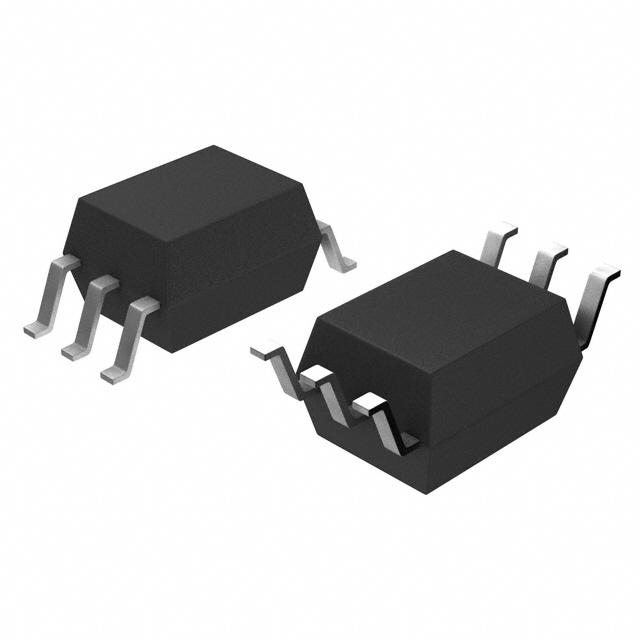

Same model may have multiple batches, images only for reference.
TLP197G(TP,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP197G(TP,F)

Part No TLP197G(TP,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description PHOTORELAY MOSFET OUTPUT 6-SOP
Datasheet
TLP197G(TP,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 35 Ohm
Load Current 120mA
Voltage - Input 1.15VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SOP (2.54mm)
Relay Type Relay
Win Source Part Number 127867-TLP197G(TP,F)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP197G(TP,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP197G(TP,F) is a single-pole, single-throw (SPST) relay that comes in a 6-SOP (2.54mm) package.

  • Load Current: 120mA
  • Maximum On-Resistance: 35 Ohm
  • Input Voltage: 1.15VDC
  • Voltage Load Range: 0 to 350V
  • Suitable for: use in applications such as programmable controllers, I/O interface, and power supply control
  • Operating Temperature: -40°C to 100°C
  • Approval: UR
