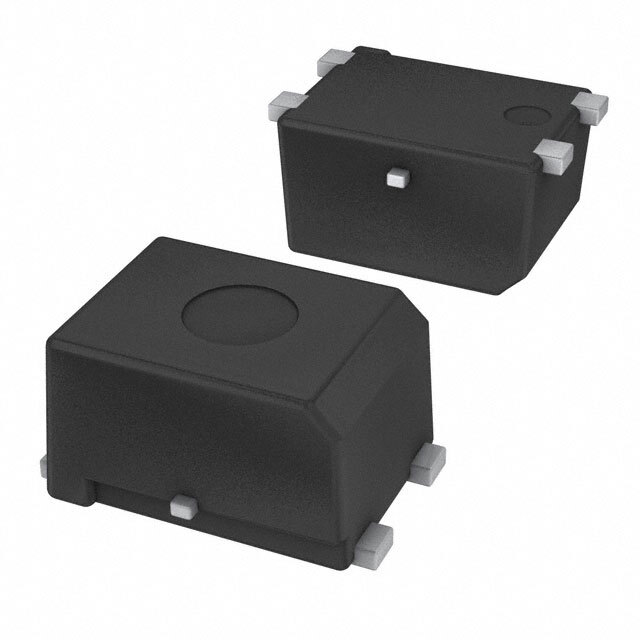

TLP3306(TP15,F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3306(TP15,F

Part No TLP3306(TP15,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description SSR RELAY SPST-NO 400MA 0-75V  /  Solid State SPST-NO (1 Form A) 4-SMD (0.128", 3.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Toshiba Semiconductor and Storage
Series TLP3306
Package Tape & Reel
Mounting SMD (SMT)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.15VDC
Voltage - Load 0 V ~ 75 V
Load Current 400 mA
On-State Resistance (Max) 1.5 Ohms
Termination Style SMD (SMT) Tab
Package / Case 4-SMD (0.128", 3.25mm)
Supplier Device Package 4-USOP
Base Product Number TLP3306
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8536.41.0030
Other Names TLP3306(TP15FTR,TLP3306(TP15FDKR,TLP3306(TP15FCT,TLP3306(TP15,F(O
Standard Package 1,500
Win Source Part Number 1099960-TLP3306(TP15,F
Ultra Librarian 3D Model Ultra Librarian TLP3306(TP15,F CAD Model

Description

The Toshiba Semiconductor and Storage TLP3306 is a solid-state relay that has an input voltage of 1.15VDC and an output type of AC/DC.

  • Input Voltage: 1.15VDC
  • Output Type: AC/DC
  • On-State Resistance: 1.5 ohms
  • Load Current: 400mA
  • Circuit: SPST-NO (1 Form A)
  • Package: 4-SMD (0.128 inches, 3.25mm)
  • Supplier Device Package: 4-USOP
  • Base Product Number: TLP3306
