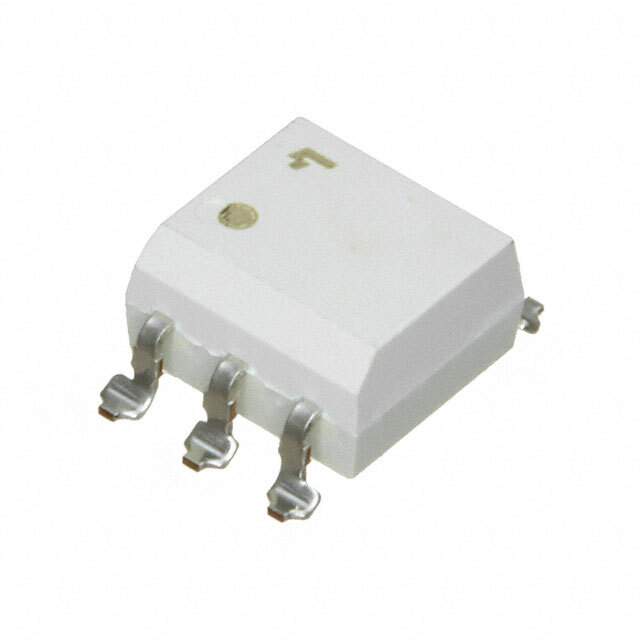

The TLP3545A(TP1F(O is a Photovoltaic MOSFET Driver manufactured by Toshiba Semiconductor and Storage. It consists of an infrared LED (light-emitting diode) optically coupled to a photovoltaic generator. This driver is designed for applications requiring electrical isolation between the control circuit and the driven circuit. It's commonly used in industrial automation, motor control, and other high-voltage applications.

Applications

• Industrial automation
• Motor control
• Solid-state relays (SSRs)
• Programmable logic controllers (PLCs)
• High-voltage switching

Features

• Photovoltaic MOSFET driver
• High isolation voltage
• Fast switching speed
• Low input current
• Small package size
• RoHS compliant

Benefits

• Provides electrical isolation between control and driven circuits, enhancing safety and reliability.
• Fast switching speed enables high-frequency operation.
• Low input current minimizes power consumption in the control circuit.
• Small package size saves valuable board space.

Additional Details

The TLP3545A(TP1F(O photovoltaic MOSFET driver generates a voltage when the infrared LED is forward biased. This voltage is used to drive the gate of a MOSFET, switching the load. The isolation voltage specifies the maximum voltage that the driver can withstand between the input and output sides. Toshiba provides detailed datasheets for this driver, including information on input current requirements, output voltage characteristics, switching speed, and isolation voltage. A current limiting resistor is needed in series with the input LED to prevent it from burning out. The value of this resistor depends on the forward voltage of the LED and the input voltage. Proper PCB layout is essential to maintain the high isolation voltage. Keep the input and output sides separated and minimize stray capacitance. The TLP3545A(TP1F(O is typically used in solid-state relays (SSRs) to switch AC or DC loads. In these applications, the photovoltaic driver replaces the traditional coil and contacts of an electromechanical relay.
