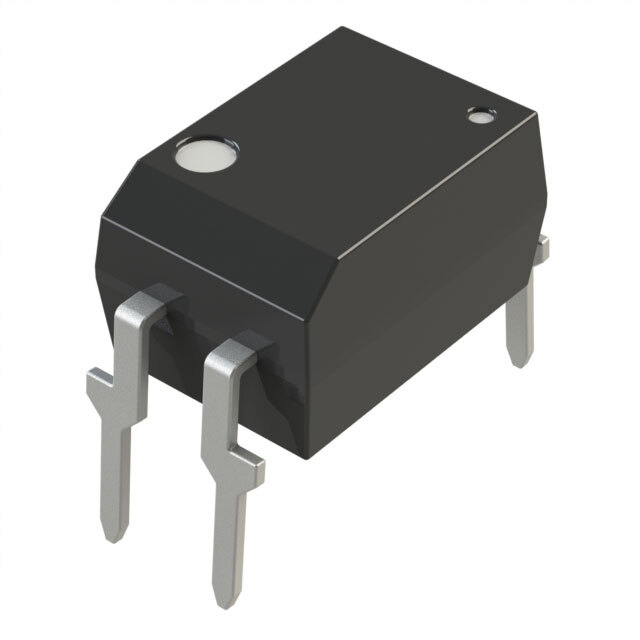

Same model may have multiple batches, images only for reference.
TLP3555A(F Toshiba Semiconductor and Storage – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TLP3555A(F

Part No TLP3555A(F
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description Solid State SPST-NO (1 Form A) 4-DIP (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Toshiba Semiconductor and Storage
Series TLP3555A
Packaging Tube
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.64VDC
Voltage - Load 0 V ~ 60 V
Load Current 3 A
On-State Resistance (Max) 100 mOhms
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 110°C
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
Approval Agency CSA, cUL, UL, VDE
Base Product Number TLP355
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1478219-TLP3555A(F
Ultra Librarian 3D Model Ultra Librarian TLP3555A(F CAD Model
