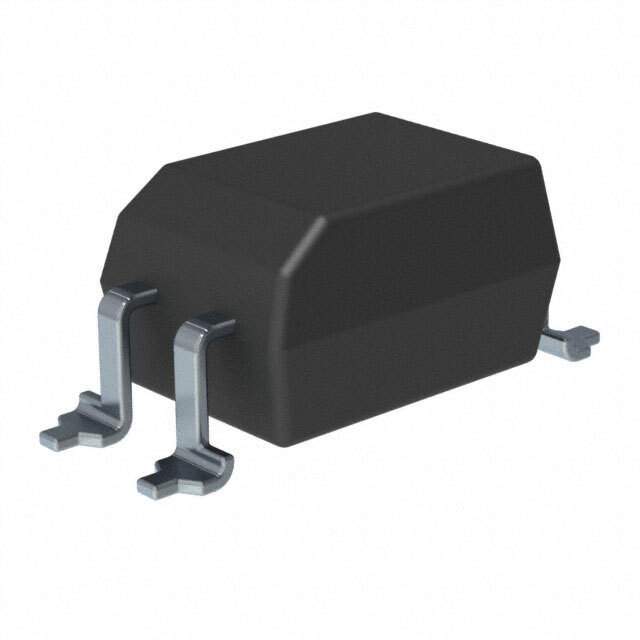

The TLP3558A(TP1F(O) is an IGBT gate drive optocoupler manufactured by Toshiba Semiconductor and Storage. This device is designed for driving IGBTs and power MOSFETs in applications such as motor control, inverters, and power supplies. It provides high isolation and fast switching speeds necessary for efficient power conversion.

Applications:

• IGBT/MOSFET Gate Drives
• Inverter Circuits
• AC and DC Servo Motor Control
• Uninterruptible Power Supplies (UPS)
• General Purpose Inverters

Features:

• High Isolation Voltage: Provides robust electrical isolation between the control and power circuits.
• High Output Current: Capable of driving IGBTs and MOSFETs directly.
• Fast Switching Speed: Minimizes switching losses and improves efficiency.
• High Common-Mode Transient Immunity: Prevents false triggering caused by noise.
• Under Voltage Lockout (UVLO): Protects the IGBT/MOSFET from damage due to low gate voltage.

Benefits:

• Enhanced Safety: High isolation protects the control circuitry from high-voltage transients.
• Improved Efficiency: Fast switching reduces power losses in the power devices.
• Reliable Operation: UVLO feature prevents damage to the IGBT/MOSFET.
• Reduced Noise: High common-mode transient immunity prevents false triggering.
• Simplified Design: Integrated features reduce the number of external components required.

Additional Details:

The TLP3558A(TP1F(O) has a high output current capability. The isolation voltage is typically 5000 Vrms. The switching speeds are very fast, enhancing the efficiency of the power circuit. It includes an under-voltage lockout feature for added protection. The operating temperature range is -40°C to 100°C. This optocoupler is specifically designed for driving power devices in high-power applications.
