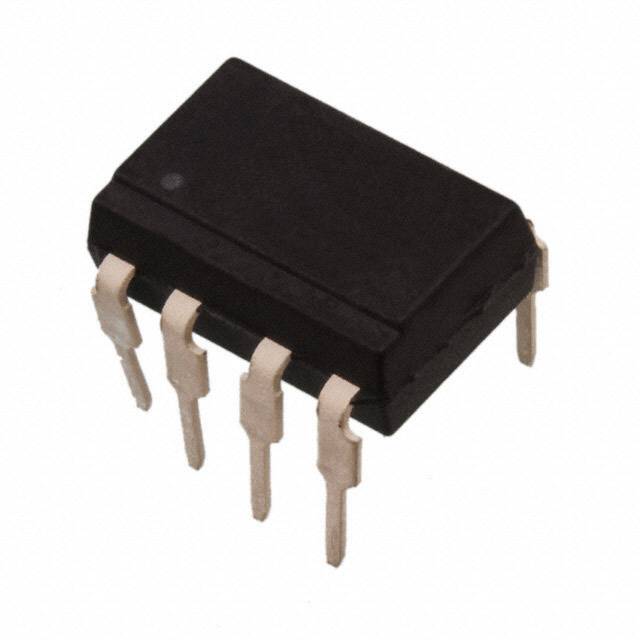

The Isocom Components 2004 LTD TLP521-2BL is an optoisolator that features a transistor and photovoltaic output.

• Package: packaged in a tube
• Mounting: mounted through a hole
• Operating temperature range: from -30°C to 100°C
• Input type: DC
• Output type: transistor
• Maximum current DC forward: 50mA
• Typical forward voltage: 1.15V
• Rise/fall time: 4μs/3μs
• Number of channels: 2
• Voltage isolation: 5300Vrms
• Current transfer ratio: 100% @ 5mA
• Maximum transfer ratio: 600% @ 5mA
• Maximum output voltage: 55V
• Vce saturation: 400mV
• Product: part of the isolator category and is an active part.
• Popularity: medium
• Supply and demand status: limited.
