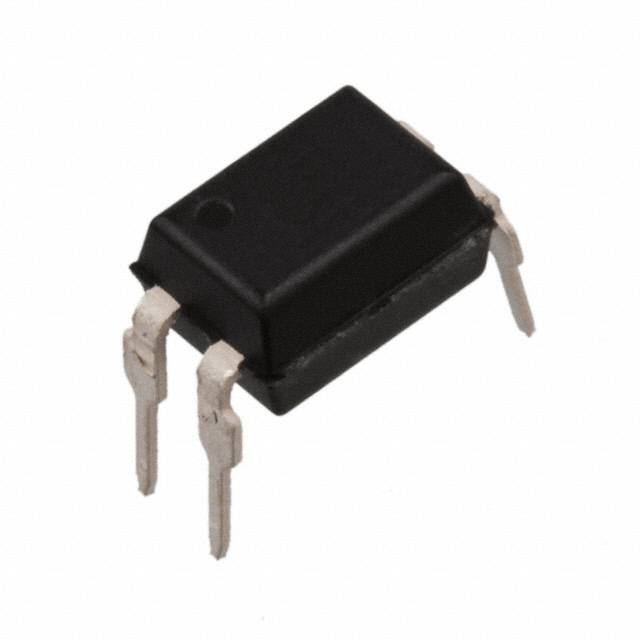

The TLP621(D4-Y-LF2F) is a high-isolation optocoupler from Toshiba Semiconductor and Storage, consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon phototransistor. This configuration ensures electrical isolation between the input and output circuits, providing a crucial safety barrier and preventing ground loops in sensitive electronic systems.

Applications

• PLC (Programmable Logic Controller) Input/Output Modules: Provides isolation between the PLC control circuitry and external devices.
• SMPS (Switched-Mode Power Supplies): Offers isolation in feedback and control circuits within power supplies.
• Motor Control Circuits: Isolates control signals in motor drive applications to protect the control circuitry.
• Inverter Applications: Provides isolation between the control side and the power side of inverters.
• General-Purpose Isolation: Used for general-purpose isolation in various electronic systems.

Features

• High Isolation Voltage: Offers a high isolation voltage rating (typically 5000 Vrms) for enhanced safety and reliability.
• Low Input Current: Requires a low input current to activate the LED, making it compatible with various logic circuits.
• High Current Transfer Ratio (CTR): Ensures efficient signal transfer between the input and output.
• Compact Package: Available in a compact DIP package for easy mounting on PCBs.
• Pb-Free and RoHS Compliant: Complies with environmental regulations for lead-free manufacturing.

Benefits

• Enhanced Safety: Protects electronic circuits from high voltages, transients, and electrical noise.
• Improved Signal Integrity: Reduces noise coupling and improves signal quality in isolated circuits.
• Simplified Circuit Design: Simplifies the design of isolated systems by providing a convenient isolation barrier.
• Increased Reliability: Offers robust performance and long-term reliability in demanding environments.
• Compliance: Meets relevant safety and environmental standards.

The TLP621 series is designed for high-density mounting and is available in various lead forming options. The (D4-Y-LF2F) suffix indicates a specific lead forming and packaging configuration, likely related to tape and reel packaging for automated assembly. This optocoupler is commonly used in industrial automation, power supplies, and motor control applications due to its robust performance and safety features. The device's wide operating temperature range and stable performance make it suitable for demanding industrial environments.
