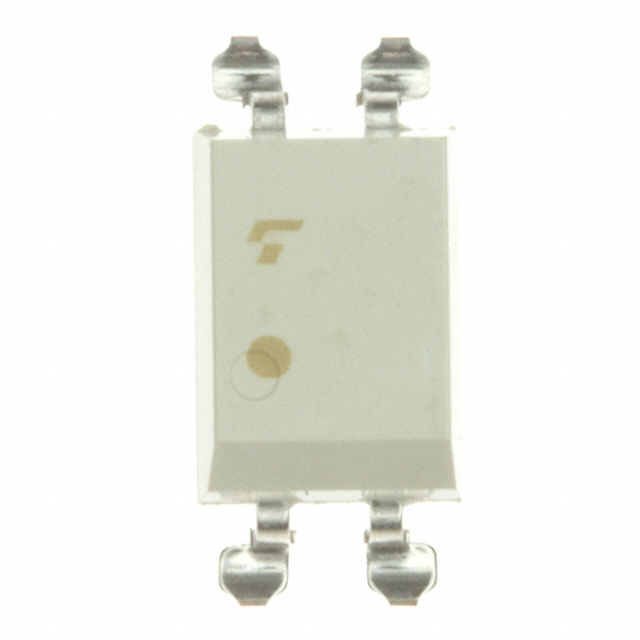

TLP627(TP1,F) Toshiba Semiconductor and Storage TLP627(TP1,F) real image TLP627(TP1,F) label picture
Same model may have multiple batches, images only for reference.
TLP627(TP1,F) Toshiba Semiconductor and Storage TLP627(TP1,F) real image TLP627(TP1,F) label picture
TLP627(TP1,F) Toshiba Semiconductor and Storage TLP627(TP1,F) real image TLP627(TP1,F) label picture
Same model may have multiple batches, images only for reference.

TLP627(TP1,F)

Part No TLP627(TP1,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Transistor Output Optocouplers 300V Phototransistor 5000 Vrms 60 IF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 1000% @ 1mA
Switching Turn-On and Turn-Off Time 50μs, 15μs
Rise and Fall Time 40μs, 15μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 300V
Channel Output Current 150mA
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Vce Saturation (Max) 1.2V
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 032839-TLP627(TP1,F)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name TLP627
Introduction Date February 26, 1998
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TLP627(TP1,F) CAD Model

Description

The Toshiba TLP627(TP1,F) is an active isolator with a Darlington output type and 5000Vrms isolation voltage.

  • Min DC Current Transfer Ratio: It has a minimum DC current transfer ratio of 1000% @ 1mA.
  • Channel Output Current: a channel output current of 150mA.
  • Switching Turn-On and Turn-Off Time: The switching turn-on and turn-off time is 50μs and 15μs, respectively.
  • Rise and Fall Time: the rise and fall time is 40μs and 15μs, respectively.
  • Status: The supply and demand status is sufficient.
