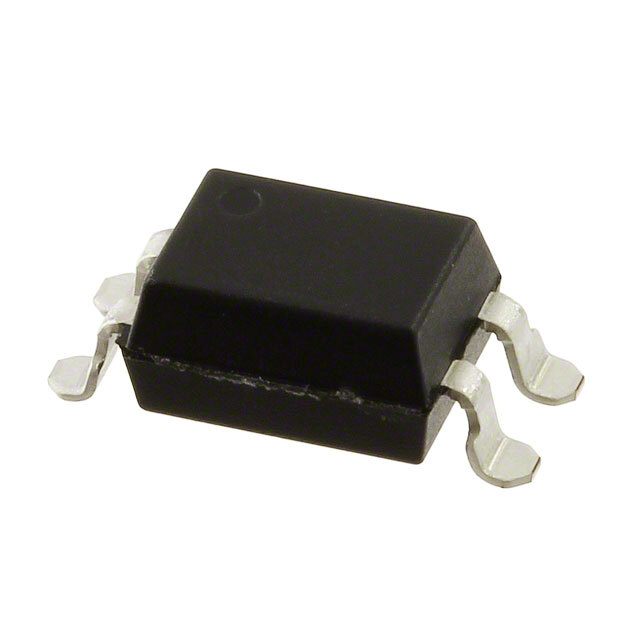

TLP785(D4YH-T6,F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP785(D4YH-T6,F

Part No TLP785(D4YH-T6,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description X36 PB-F TRANSISTOR COUPLER VDE  /  Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel (TR)
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 75% @ 5mA
Current Transfer Ratio (Max) 150% @ 5mA
Turn On / Turn Off Time (Typ) 3µs, 3µs
Rise / Fall Time (Typ) 2µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Base Product Number TLP785
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP785(D4YH-T6F
Standard Package 4,000
Win Source Part Number 1100078-TLP785(D4YH-T6,F
Ultra Librarian 3D Model Ultra Librarian TLP785(D4YH-T6,F CAD Model

Description

The TLP785(D4YH-T6,F) is an optoisolator transistor IC with a DC input type and a transistor output type manufactured by Toshiba Semiconductor and Storage.

  • Current Transfer Ratio: 75% @ 5mA
  • Maximum Current Transfer Ratio: 150% @ 5mA
  • Voltage Isolation: 5000Vrms
  • Maximum Output Voltage: 80V
  • Packaging: Tape and reel
  • Standard Package: 4000
  • Package/Case: 4-SMD, gull wing
  • Mounting Type: SMD (SMT)
  • Operating Temperature Range: -55°C to 110°C
  • Alternative Parts: No alternative parts
