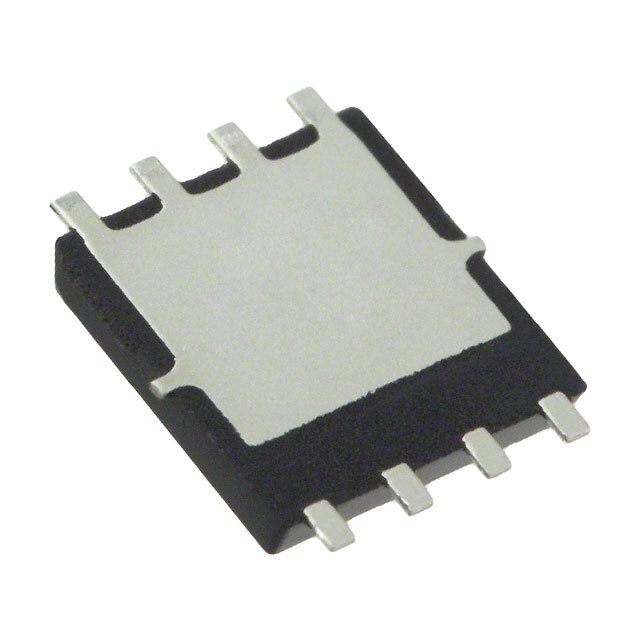

The TPCA8104 is a P-channel MOSFET from Toshiba Semiconductor and Storage, primarily used in load switch and power management applications. Its low on-resistance and gate charge contribute to efficient switching and reduced power loss. The device's compact size makes it suitable for portable and space-constrained applications.

Applications:

• Load switching for mobile devices
• Power management circuits in portable electronics
• DC-DC converters
• Battery charging and discharging circuits

Features:

• Low drain-source on-resistance (RDS(on))
• Low gate charge (Qg)
• Fast switching speed
• Small surface mount package
• Pb-free plating; Halogen Free

Benefits:

• Improved power efficiency due to reduced conduction losses (low RDS(on))
• Reduced switching losses because of low gate charge (Qg)
• Compact and lightweight design suitable for portable applications
• Simplified circuit design due to its ease of use
• Environmentally compliant due to Pb-free and Halogen Free construction

Additional Details:

The TPCA8104's datasheet provides detailed specifications such as drain-source voltage (VDS), gate-source voltage (VGS), continuous drain current (ID), pulsed drain current (IDP), and power dissipation (PD). The RDS(on) value is specified at different gate-source voltages and drain currents. This MOSFET's fast switching characteristics and low gate charge enable efficient operation in high-frequency switching applications. Its thermal resistance is also an important parameter for determining its power handling capability. Ensure that the device is operated within its specified operating conditions to maintain optimal performance and reliability.
