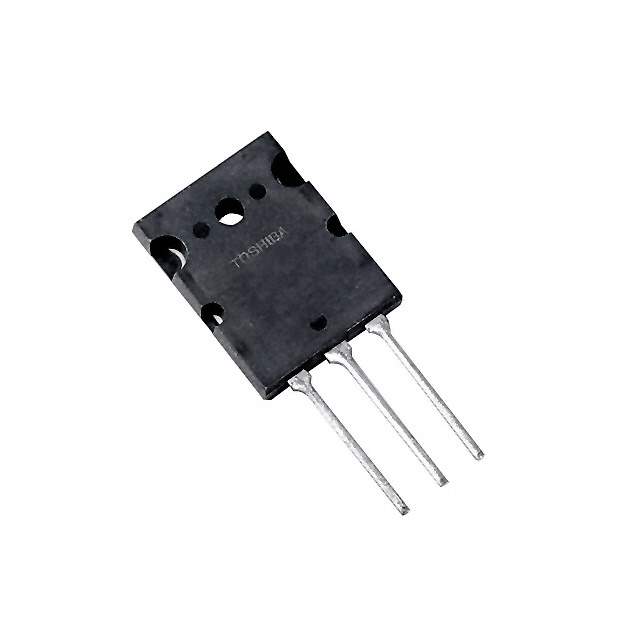

TTC5200 Real Image
Same model may have multiple batches, images only for reference.

TTC5200

Part No TTC5200
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors (BJT) - Single
Description TRANS NPN 230V 15A TO-3PL / Trans GP BJT NPN 230V 15A 150000mW 3-Pin(3+Tab) TO-3PL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Transistor Polarity NPN
Maximum Current Collector 15A
VCEO Maximum Collector-Emitter Breakdown Voltage 230V
Max Vce (sat) 3V @ 800mA, 8A
Collector Cut-off Current(Max) 5μA (ICBO)
Typical Gain (hFE) (Min) 80 @ 1A, 5V
Maximum Power Dissipation 150W
Frequency - Transition 30MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-3P(L)
Win Source Part Number 056861-TTC5200
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TTC5200
Introduction Date July 13, 2009
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TTC5200 CAD Model

Description

The TTC5200 is an NPN transistor from Toshiba Semiconductor and Storage that is used in various electronic applications.

  • Maximum Collector Current: 15A
  • Maximum Collector-Emitter Breakdown Voltage: 230V
  • Typical Gain (hFE): 80 @ 1A and 5V
  • Maximum Power Dissipation: 150W
  • Package: TO-3P(L)
  • Operating Temperature: 150°C
  • Popularity: highly popular
  • Supply and Demand Status: limited
