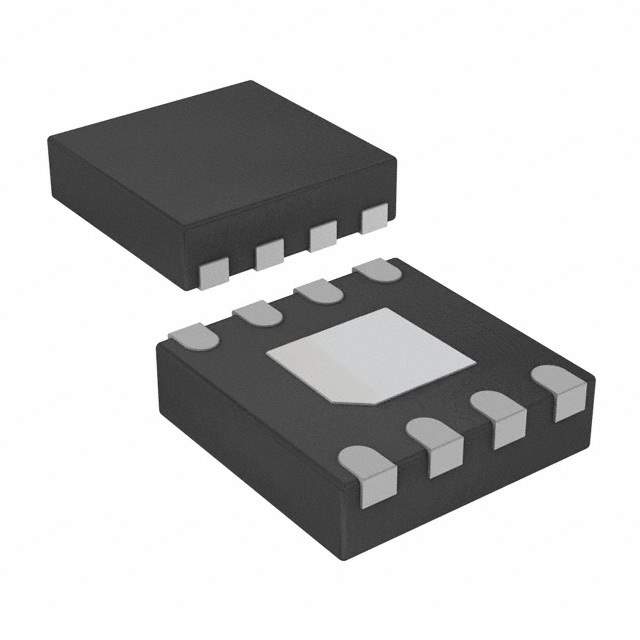

TS3001ITD822T Real Image
Same model may have multiple batches, images only for reference.

TS3001ITD822T

Part No TS3001ITD822T
Manufacturer Touchstone Semiconductor
Catalog Clock/Timing - Programmable Timers and Oscillators
Description IC OSC SILICON PROG 8-TDFN
Datasheet
TS3001ITD822T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Touchstone Semiconductor
Packaging Cut Reel
Status Obsolete(EOL)
Type Oscillator, Silicon
Frequency 5.2kHz to 90kHz
Supply Voltage - Operating 0.9 V to 1.8 V
Operating Supply Current 2.1μA
Temperature Range - Operating -40°C to 85°C
Case / Package 8-TDFN (2x2)
Mounting Surface Mount
Win Source Part Number 115130-TS3001ITD822T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TS3001ITD822T CAD Model

Description

The Touchstone Semiconductor TS3001ITD822T is an oscillator, silicon integrated circuit that has a frequency range of 5.2kHz to 90kHz.

  • Case/Package: 8-TDFN (2x2)
  • Mounting Type: Surface Mount
  • Frequency Range: 5.2kHz to 90kHz
  • Supply Voltage Range: 0.9V to 1.8V
  • Operating Supply Current: 2.1μA
  • Operating Temperature: -40°C to 85°C
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Balanced
