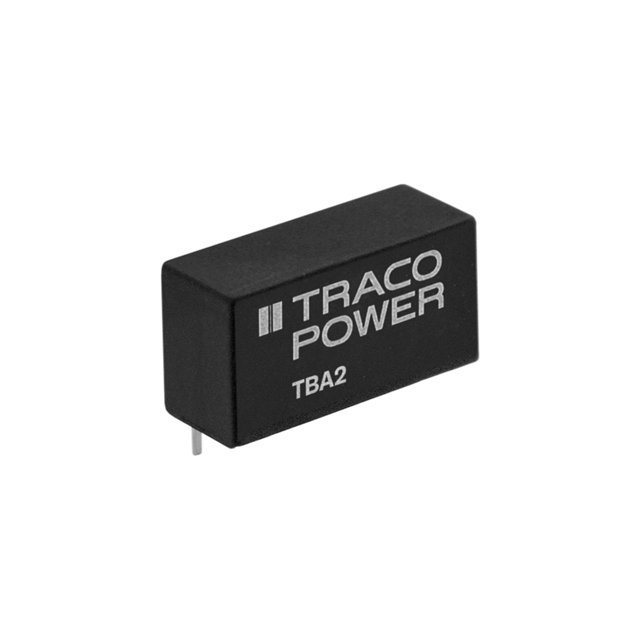

TBA 2-1222 Real Image
Same model may have multiple batches, images only for reference.

TBA 2-1222

Part No TBA 2-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1.9W / Isolated Module DC DC Converter 2 Output 12V -12V 80mA, 80mA 10.8V - 13.2V Input
Datasheet
TBA 2-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TBA 2 (2W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 80mA, 80mA
Power (Watts) 1.9 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Base Product Number TBA 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TBA2-1222-ND,TBA2-1222,1951-3439
Standard Package 10
Win Source Part Number 1116415-TBA 2-1222
Ultra Librarian 3D Model Ultra Librarian TBA 2-1222 CAD Model

Description

The Traco Power TBA 2-1222 is a power supply module that can be used in various applications, including commercial ITE applications.

  • Module Type: isolated
  • Outputs: two
  • Maximum Output Current: 80mA per output
  • Voltage Isolation: 1.5kV
  • Efficiency: 83%
  • Mounting Type: through-hole
  • Package Size: 6-SIP module, 5 leads
