Same model may have multiple batches, images only for reference.

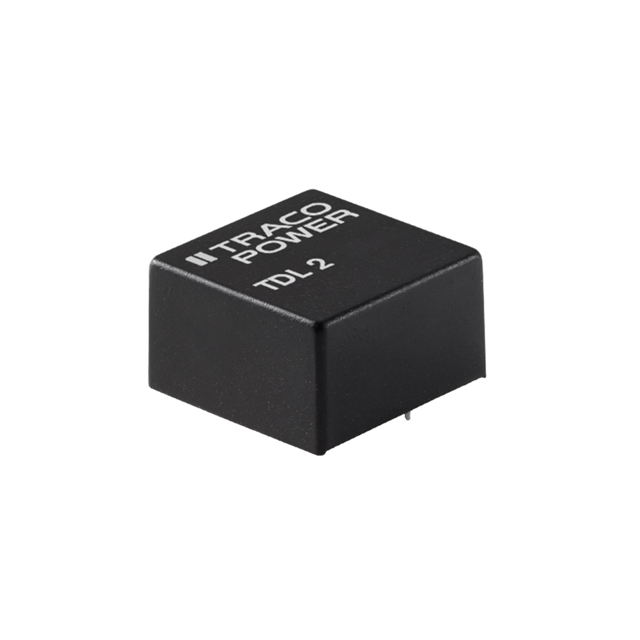

TDL 2-0523 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-0523

Part No TDL 2-0523
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 4.5V - 10V Input
Datasheet
TDL 2-0523 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 10V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 85%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDL 2-0523-ND,TDL2-0523
Standard Package 10
Win Source Part Number 1335347-TDL 2-0523
Ultra Librarian 3D Model Ultra Librarian TDL 2-0523 CAD Model

Description

The Traco Power TDL 2-0523 is a 2W isolated module DC-DC converter commonly used in ITE (Commercial) applications.

  • Efficiency: 85 percent
  • Size: 0.55" x 0.55" x 0.31"
  • Feature: Built-in SCP
  • Compliance: ROHS3
  • Status: Not for new designs.
