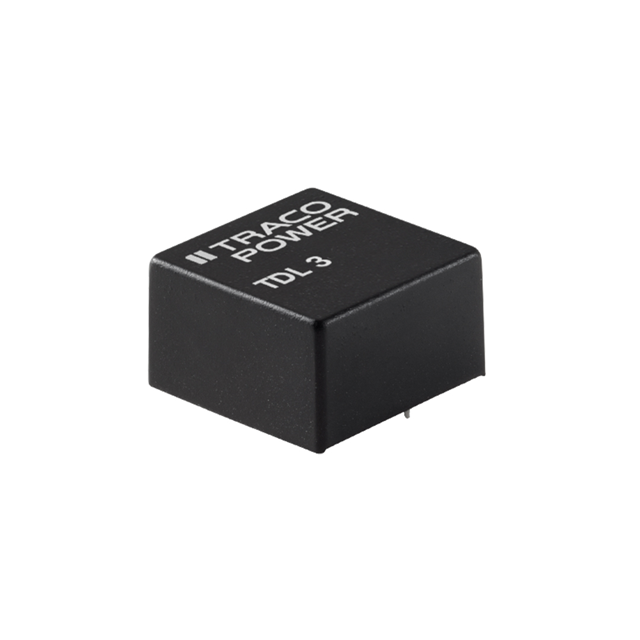

TDL 3-0522 Real Image
Same model may have multiple batches, images only for reference.

TDL 3-0522

Part No TDL 3-0522
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 10V Input
Datasheet
TDL 3-0522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 10V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 84%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TDL 3-0522,TDL 3-0522-ND,TDL3-0522
Standard Package 10
Win Source Part Number 1335346-TDL 3-0522
Ultra Librarian 3D Model Ultra Librarian TDL 3-0522 CAD Model

Description

The Traco Power TDL 3-0522 is an isolated module DC-DC converter.

  • Power Rating: 3 W
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Current Output: 125mA (per output)
  • Input Voltage Range: 4.5V to 10V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 84%
  • Package: 7-DIP module, 5 leads
  • Mounting: Through-hole
  • Packaging: Tube
  • Operating Temperature: -40°C to 70°C
  • REACH Status: REACH unaffected
  • HTSUS code: 8504.40.9580
