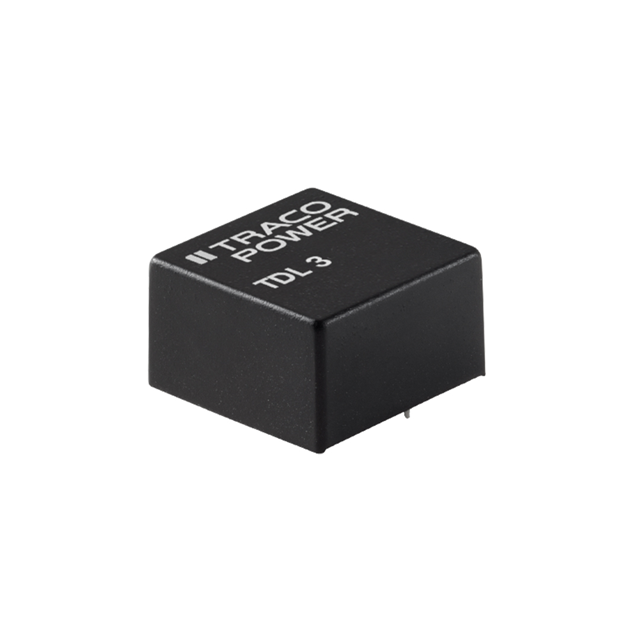

TDL 3-4822 Real Image
Same model may have multiple batches, images only for reference.

TDL 3-4822

Part No TDL 3-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
Datasheet
TDL 3-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TDL 3 (3W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 85%
Mounting Type Through Hole
Package / Case 7-DIP Module, 5 Leads
Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 3
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TDL 3-4822-ND,2266-TDL 3-4822,TDL3-4822
Standard Package 10
Win Source Part Number 1055577-TDL 3-4822
Ultra Librarian 3D Model Ultra Librarian TDL 3-4822 CAD Model

Description

The TDL 3-4822 isolated module is a DC-DC converter that is designed to convert a high input voltage into two output voltages.

  • Power Rating: 3W
  • Voltage Isolation: 1.5kV
  • Outputs: Two outputs with a maximum current output of 125mA each
  • Standard Package: 10
  • Package: Tube
  • Efficiency: 85%
  • Temperature Range: -40°C to 70°C
  • Manufacturer: Traco Power
  • Alternative Part Cross-Reference: TDL 3-4822TDL3-4822
  • MSL: Not applicable
  • REACH: Unaffected
