Same model may have multiple batches, images only for reference.

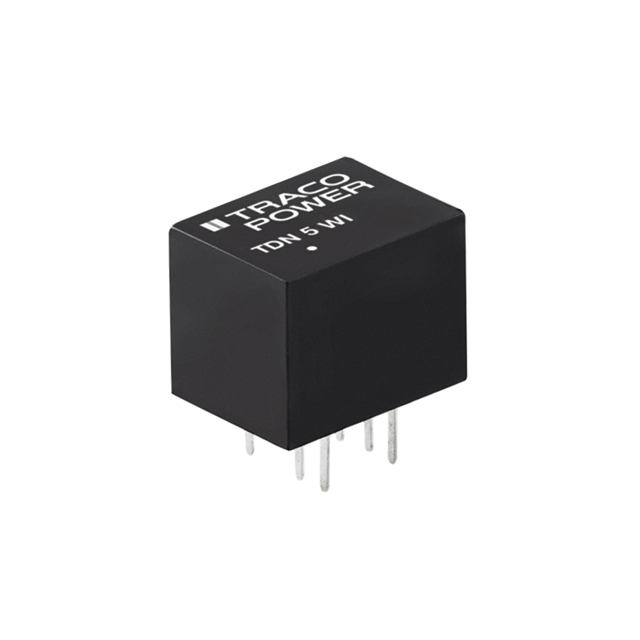

TDN 5-2412WI Real Image
Same model may have multiple batches, images only for reference.

TDN 5-2412WI

Part No TDN 5-2412WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 5W / Isolated Module DC DC Converter 1 Output 12V 420mA 9V - 36V Input
Datasheet
TDN 5-2412WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TDN 5WI (5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 420mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-DIP Module, 6 Leads
Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 5
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TDN 5-2412WI-ND,TDN5-2412WI
Standard Package 10
Win Source Part Number 1099010-TDN 5-2412WI
Ultra Librarian 3D Model Ultra Librarian TDN 5-2412WI CAD Model

Description

The TDN 5-2412WI is an isolated module DC-DC converter from Traco Power.

  • Mounting: Board mount
  • Package: 7-DIP module, 6 leads
  • Mounting Technology: Through-hole
  • Standard Package: 10
  • Packaging: Tape packaged
  • Power Rating: 5W
  • Voltage Isolation: 1.6kV
  • Output: Single output
  • Maximum Output Current: 420mA
  • Input Voltage Range: 9V to 36V
  • Efficiency: 83%
  • Operating Temperature: -40°C ~ 75°C (with derating)
  • Applications: ITE (commercial)
  • Compliance: ROHS3 compliant
