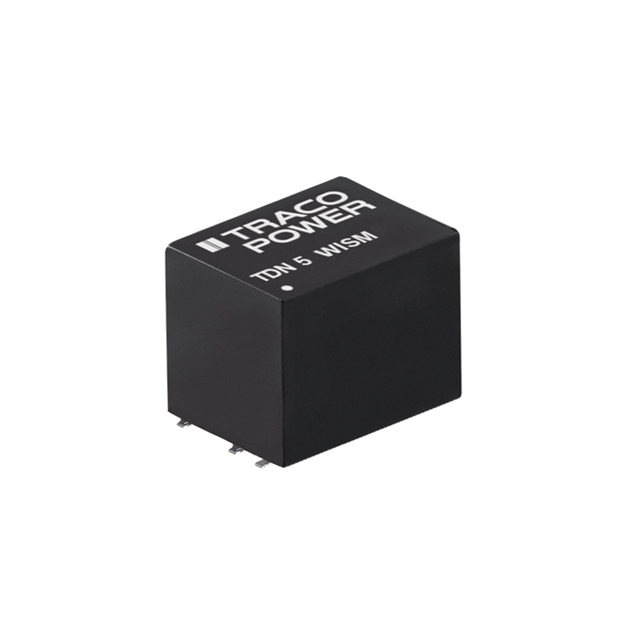

TDN 5-4822WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 5-4822WISM

Part No TDN 5-4822WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 210mA, 210mA 18V - 75V Input
Datasheet
TDN 5-4822WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 210mA, 210mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 83%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Approval Agency UL
Standard Number 60950-1; 62368-1
Base Product Number TDN 5
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN 5-4822WISM-ND,TDN5-4822WISM
Standard Package 10
Win Source Part Number 1335501-TDN 5-4822WISM
Ultra Librarian 3D Model Ultra Librarian TDN 5-4822WISM CAD Model

Description

The Traco Power DC DC Converters are a highly reliable and efficient product that is perfect for a wide range of applications.

  • Manufacturer: Traco Power
  • Win Source Part Number: 1335501-TDN 5-4822WISM
  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: Tube
  • Type: Isolated module
  • Features: Remote on/off and SCP features
  • Size/Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
  • Applications: ITE (Commercial)
  • Standard Package: 10
  • Mounting Style: Surface mount
  • Power: 5 W
  • Voltage-Isolation: 1.6 kV
  • Outputs: 2
  • Maximum Current Output: 210mA, 210mA
  • Input Voltage: 18V to 75V
  • Output Voltage: 12V (Output 1) and -12V (Output 2)
  • Efficiency: 83%
  • ROHS3 Compliant: Yes
  • Standard Number: 60950-1; 62368-1
