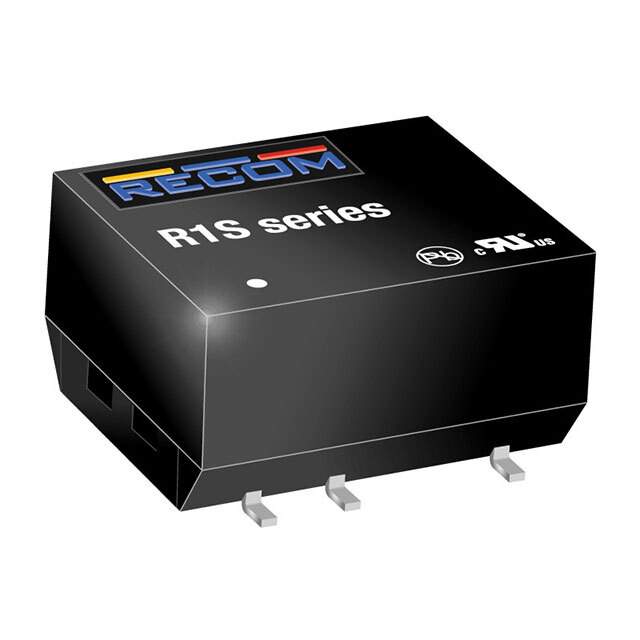

R1S12-1205/H Real Image
Same model may have multiple batches, images only for reference.

R1S12-1205/H

Part No R1S12-1205/H
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
Datasheet
R1S12-1205/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE R1S (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 78%
Mounting SMD (SMT)
Package / Case 12-SMD Module, 10 Leads
Dimension 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Base Product Number R1S12-1205
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 10900717,R1S121205/H
Standard Package 33
Win Source Part Number 1087121-R1S12-1205/H
Ultra Librarian 3D Model Ultra Librarian R1S12-1205/H CAD Model

Description

The R1S12-1205/H is a 1W isolated module DC-DC converter from Recom Power.

  • Application: ITE (Commercial) and medical
  • Voltage Input Range: 10.8V to 13.2V
  • Voltage Output: 5V
  • Current Output: 200mA
  • Package: 12-SMD module, 10 leads package
  • Features: SCP
  • Efficiency: 78%
  • Voltage Isolation: 3 kV
  • Operating Temperature: -40°C to 100°C
  • Dimension: 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
  • Mounting: SMD (SMT)
