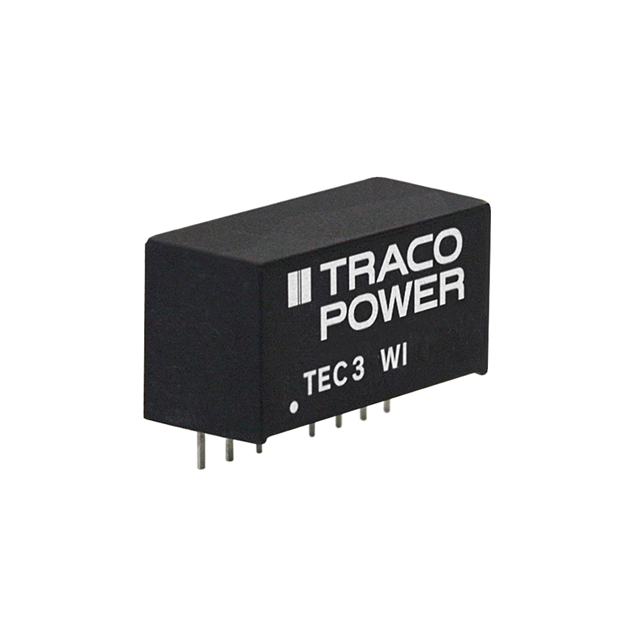

TEC 3-2422WI Real Image
Same model may have multiple batches, images only for reference.

TEC 3-2422WI

Part No TEC 3-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 36V Input
Datasheet
TEC 3-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 81%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number TEC 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1486
Standard Package 10
Win Source Part Number 1335546-TEC 3-2422WI
Ultra Librarian 3D Model Ultra Librarian TEC 3-2422WI CAD Model

Description

The Traco Power 1335546-TEC 3-2422WI is an isolated module DC DC converter that comes in a tube package.

  • Feature: Remote on/off
  • Feature: SCP
  • Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
  • Application: ITE (Commercial)
  • Power: 3 W
  • Isolation Voltage: 1.6 kV
  • Outputs: Two
  • Maximum Output Current: 125mA, 125mA
  • Input Voltage: 9V to 36V
  • Output Voltage: 12V and -12V
  • Efficiency: 81%
  • Package: 8-SIP module, 7 leads case/package
