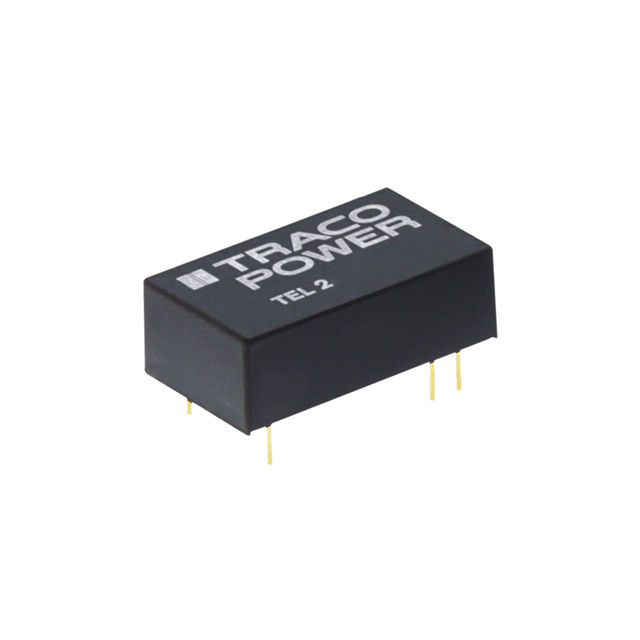

The TEL 2-1212 is a 2W isolated DC/DC converter manufactured by Traco Power. This converter is designed to provide a reliable and regulated power source with input-to-output isolation, making it suitable for a variety of applications where electrical isolation is required.

Applications:

• Industrial Control Systems: Providing isolated power for sensors, actuators, and control circuitry.
• Instrumentation: Powering sensitive measurement equipment, ensuring accuracy and safety.
• Medical Devices: Supplying isolated power in non-critical medical applications.
• Telecommunications Equipment: Providing isolation for communication interfaces.
• Automotive Electronics: Powering isolated circuits in vehicle systems.

Features:

• 2W Isolated DC/DC Converter: Provides a stable and isolated power output.
• Input Voltage Range: 9-18 VDC.
• Output Voltage: +/-12 VDC.
• I/O Isolation: 1500 VDC.
• Operating Temperature Range: -40°C to +85°C.
• Short-Circuit Protection: Protects the converter from damage due to short circuits.
• High Efficiency: Minimizes power loss and heat generation.
• Industry-Standard Pinout: Simplifies integration into existing designs.

Benefits:

• Reliable Power: Provides a stable and consistent power supply for critical applications.
• Electrical Isolation: Protects sensitive circuitry from voltage spikes and ground loops.
• Wide Operating Temperature: Suitable for use in harsh environments.
• Easy Integration: Standard pinout simplifies the design process.
• Overload Protection: Enhances the reliability and safety of the system.

Additional Details:

The TEL 2-1212 is designed for demanding applications where isolation and reliable power are essential. Its compact size and industry-standard pinout allow for easy integration into new and existing designs. The converter meets relevant safety standards, ensuring safe and reliable operation.
