Same model may have multiple batches, images only for reference.

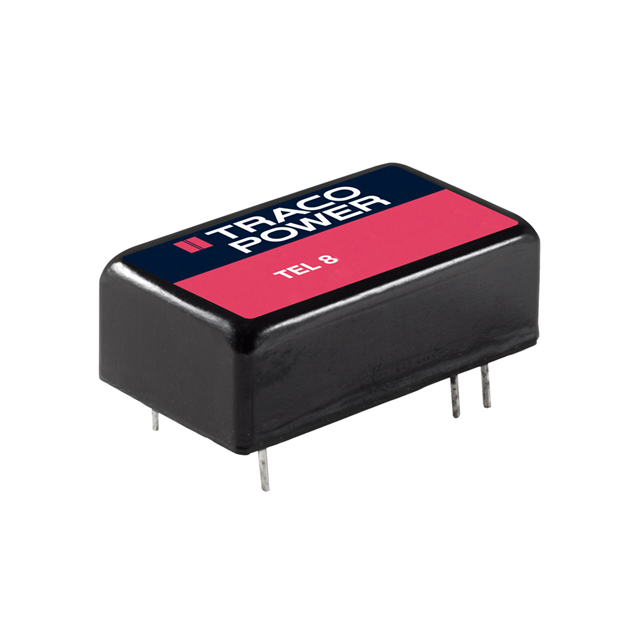

TEL 8-4822 Real Image
Same model may have multiple batches, images only for reference.

TEL 8-4822

Part No TEL 8-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 8W / Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 36V - 75V Input
Datasheet
TEL 8-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 335mA, 335mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C
Efficiency 86%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number TEL 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TEL 8-4822,TEL8-4822,TEL 8-4822-ND
Standard Package 10
Win Source Part Number 1335620-TEL 8-4822
Ultra Librarian 3D Model Ultra Librarian TEL 8-4822 CAD Model

Description

The Traco Power TEL 8-4822 is an isolated module DC-DC converter with two outputs.

  • Power Rating: 8W
  • Voltage Isolation: 1.5kV
  • Input Voltage Range: 36V to 75V
  • Output Voltage: 12V and -12V
  • Maximum Output Current: 335mA for both outputs
  • Size: 0.95” L x 0.55” W x 0.33” H (24.1mm x 14.0mm x 8.5mm)
  • Mounting: through hole
  • Features: SCP
  • Suitable for Applications: ITE (Commercial)
  • ROHS3: compliant
  • Temperature Range: -40°C to 80°C
