Same model may have multiple batches, images only for reference.

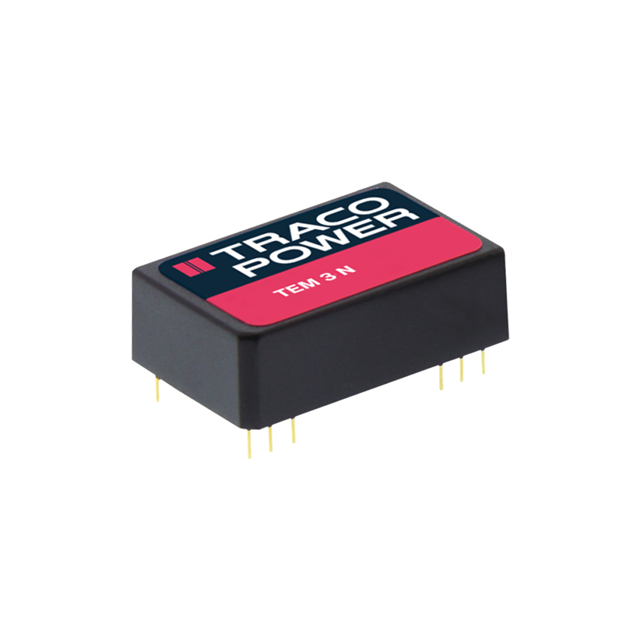

TEM 3-1211N

Name: TEM 3-1211N
Brand: Traco Power
SKU: 1335631
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TEM 3-1211N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 10.8V - 13.2V Input
Datasheet	TEM 3-1211N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Current - Output (Max)	600mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	74%
Mounting	Through Hole
Case / Package	24-DIP Module, 12 Leads
Size / Dimension	1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Base Product Number	TEM 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-1534
Standard Package	10
Win Source Part Number	1335631-TEM 3-1211N
Ultra Librarian 3D Model	Ultra Librarian TEM 3-1211N CAD Model

Alternative Products

Description

The Traco Power DC-DC Converter is a highly efficient power supply that can handle up to 3 watts of power.

Type: isolated module
Outputs: one output
Maximum Current Output: 600mA
Input Voltage Range: between 10.8V and 13.2V
Output Voltage: 5V
Designed for: ITE (Commercial) applications
Package: 24-DIP Module, 12 Leads package
Features: SCP protection
Efficiency: 74%
