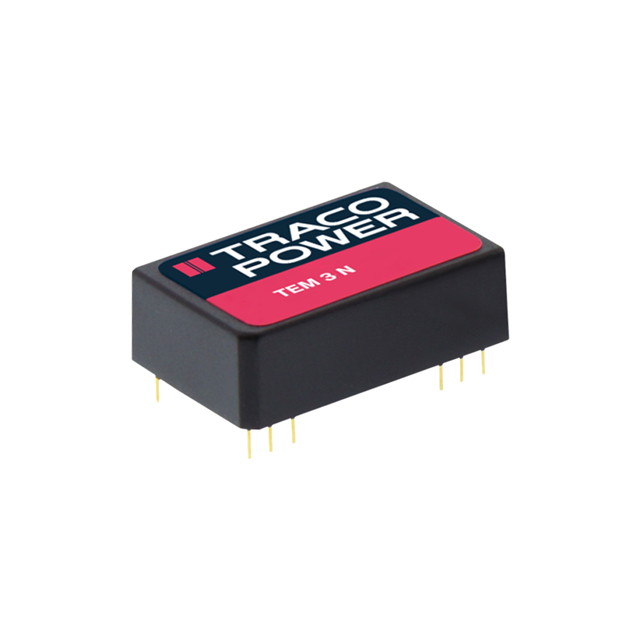

The Traco Power 1335630-TEM 3-2412N is a high-quality electronic component that belongs to the Power Supplies - Board Mount>DC DC Converters category.

• Win Source Part Number: 1335630-TEM 3-2412N
• Packaging: tube
• Component Type: isolated module type with SCP features
• Size / dimension: 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
• Designed for: ITE (Commercial) applications
• Standard Package: 10
• Mounting: through hole
• Power (watts): 3 W
• Voltage - isolation: 1.5 kV
• Number of outputs: 1
• Current - output (Max): 250mA
• Voltage - input (Min): 21.6V
• Voltage - input (Max): 26.4V
• Voltage - output 1: 12V
• Efficiency: 80%
• Voltage - output 4: not applicable
• Temperature range - operating: -40°C ~ 85°C (With Derating)
• Package: 24-DIP Module, 12 Leads
• ECCN: EAR99
