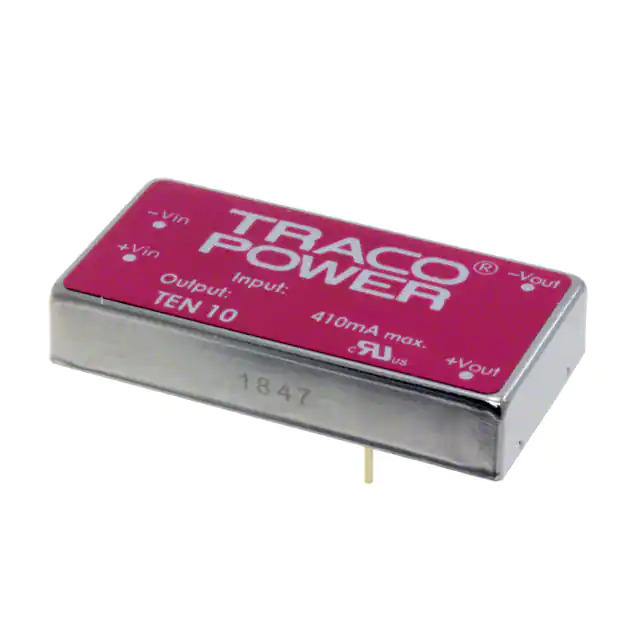

TEN 10-1222 Traco Power
Same model may have multiple batches, images only for reference.

TEN 10-1222

Part No TEN 10-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 10W
Datasheet
TEN 10-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TEN 10 (10W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 415mA, 415mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package -
Base Product Number TEN 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372929-TEN 10-1222
Ultra Librarian 3D Model Ultra Librarian TEN 10-1222 CAD Model

Description

The TEN 10-1222 is a DC-DC converter module in a 5-DIP module package. It is manufactured by Traco Power.

  • Lifecycle Status: NRND
  • Temperature Range: -40°C ~ 85°C with derating
  • Voltage - Input (Min): 9V
  • Voltage - Input (Max): 18V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Current - Output: 415mA
  • Power (Watts): 10W
  • Features: Overcurrent Protection (OCP), Overvoltage Protection (OVP), Short Circuit Protection (SCP)
  • Applications: ITE (commercial)
  • Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Efficiency: 81%
