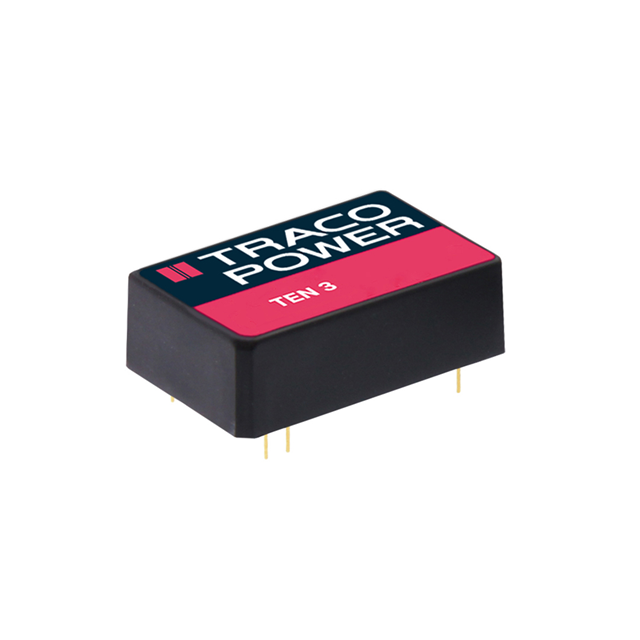

TEN 3-4821 Real Image
Same model may have multiple batches, images only for reference.

TEN 3-4821

Part No TEN 3-4821
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5.5V -5V 2.6W / Isolated Module DC DC Converter 2 Output 5.5V -5V 250mA, 250mA 36V - 72V Input
Datasheet
TEN 3-4821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 72V
Voltage - Output 1 5.5V
Voltage - Output 2 -5V
Current - Output (Max) 250mA, 250mA
Power (Watts) 2.6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Approval Agency CB, cCSAus
Base Product Number TEN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 3-4821-ND,TEN3-4821
Standard Package 10
Win Source Part Number 1335743-TEN 3-4821
Ultra Librarian 3D Model Ultra Librarian TEN 3-4821 CAD Model

Description

The Traco Power TEN 3-4821 is an isolated module DC-DC converter with a power output of 2.6W.

  • Module Type: Isolated
  • Power Output: 2.6W
  • Number of Outputs: Two
  • Voltage Output: 5.5V and -5V
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5kV
  • Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Mounting: Through Hole
  • Efficiency: 80%
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • ROHS Compliance: ROHS3
  • Approvals: CB and cCSAus approval agency
