Same model may have multiple batches, images only for reference.

TEN 3-4823WI

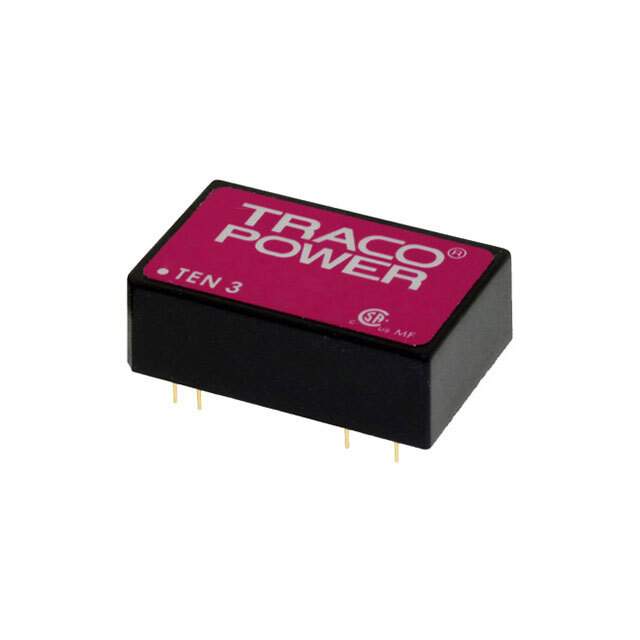

Name: TEN 3-4823WI
Brand: Traco Power
SKU: 1335766
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TEN 3-4823WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 75V Input
Datasheet	TEN 3-4823WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	82%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Approval Agency	CB, cCSAus
Base Product Number	TEN 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2171
Standard Package	10
Win Source Part Number	1335766-TEN 3-4823WI
Ultra Librarian 3D Model	Ultra Librarian TEN 3-4823WI CAD Model

Alternative Products

Description

The TEN 3-4823WI is a DC-DC converter module manufactured by Traco Power.

Device Type: Isolated Module
Package: 24-DIP module with 8 leads
Supply and Demand Status: Not for new designs
Efficiency: 82%
Power Rating: 3W
Number of Outputs: Two
Voltage Isolation: 1.5 kV
Current Output: 100mA each
Application: ITE (Commercial)
