Same model may have multiple batches, images only for reference.

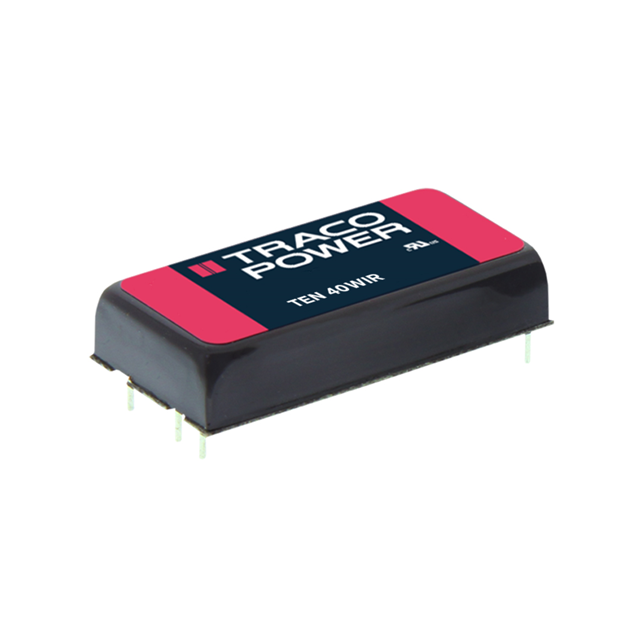

TEN 40-2423WIR Real Image
Same model may have multiple batches, images only for reference.

TEN 40-2423WIR

Part No TEN 40-2423WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 40W / Isolated Module DC DC Converter 2 Output 15V -15V 1.333A, 1.333A 9V - 36V Input
Datasheet
TEN 40-2423WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1.333A, 1.333A
Power (Watts) 40 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2184
Standard Package 10
Win Source Part Number 1335789-TEN 40-2423WIR
Ultra Librarian 3D Model Ultra Librarian TEN 40-2423WIR CAD Model

Description

The Traco Power TEN 40-2423WIR is a DC-DC converter with a power output of 40 watts.

  • Type: Isolated module
  • Features: Remote On/Off, OCP, OVP, SCP, and UVLO features
  • Size: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Applications: ITE (Commercial) and Railway
  • Voltage Isolation: 1.6 kV
  • Outputs: Two
  • Maximum Output Current: 1.333A, 1.333A
  • Input Voltage Range: 9V to 36V
  • Output Voltage: 15V and -15V
  • Efficiency: 90%
  • Temperature Range: -40°C ~ 85°C (With Derating)
  • Package: 6-DIP Module
  • Compliance: ROHS3 compliant
