TEN 5-2422
Same model may have multiple batches, images only for reference.

TEN 5-2422

Part No TEN 5-2422
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W
Datasheet
TEN 5-2422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TEN 5 (6W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 5
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 847256-TEN 5-2422
Ultra Librarian 3D Model Ultra Librarian TEN 5-2422 CAD Model

Description

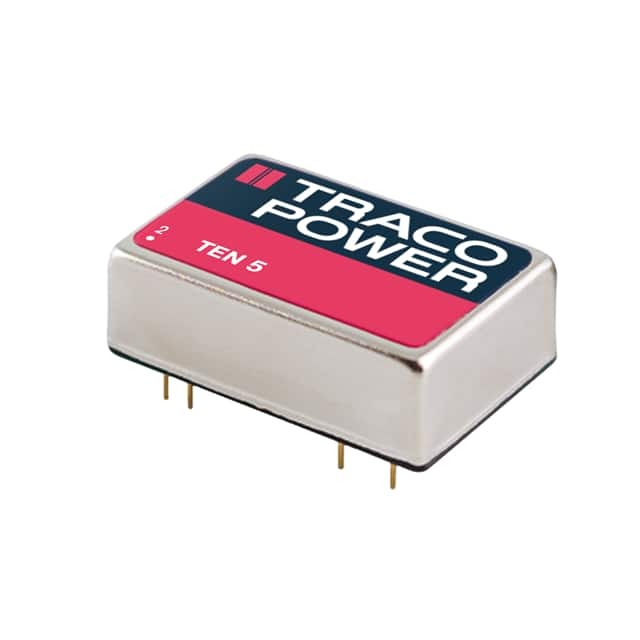

The TEN 5-2422 is a 6W DC-DC converter module from Traco Power.

  • Series: TEN 5
  • Application: Board Mount
  • Package Type: Tube
  • Size: 1.25" L x 0.80" W x 0.40" H
  • Protection: Short Circuit Protection (SCP)
  • Output Type: Dual
  • Output Voltage: 12V, -12V
  • Output Current (Max): 250mA (each output)
  • Application: Commercial ITE
  • Efficiency: 86%
  • Voltage Isolation: 1.5 kV
  • Input Voltage: 18V to 36V
  • Mounting Type: Through Hole
  • Package: 24-DIP, 7 Leads
  • Operating Temperature: -40°C to 85°C (with derating)
  • Lifecycle Status: Not For New Designs
  • Standard Package: 10 pcs
