Same model may have multiple batches, images only for reference.

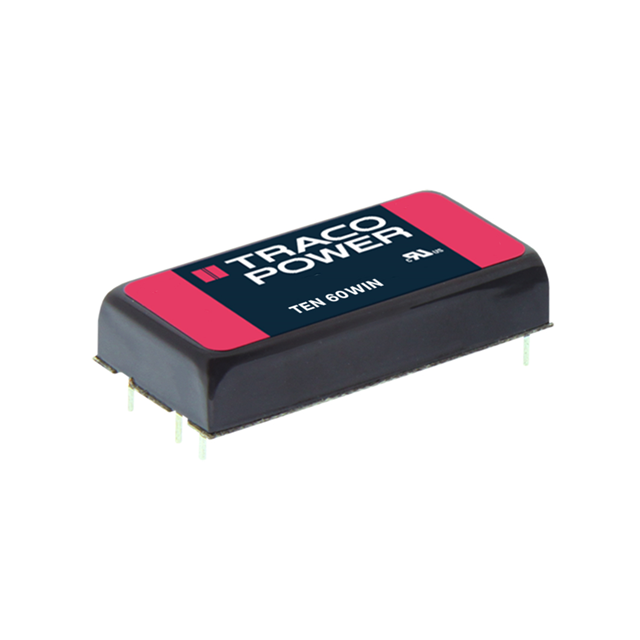

TEN 60-2423WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 60-2423WIN

Part No TEN 60-2423WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 60W / Isolated Module DC DC Converter 2 Output 15V -15V 2A, 2A 9V - 36V Input
Datasheet
TEN 60-2423WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 2A, 2A
Power (Watts) 60 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 60
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN60-2423WIN,TEN 60-2423WIN-ND,1951-3036,TEN60-2423WIN-ND
Standard Package 10
Win Source Part Number 1335800-TEN 60-2423WIN
Ultra Librarian 3D Model Ultra Librarian TEN 60-2423WIN CAD Model

Description

The DC-DC Converter from Traco Power is a highly efficient power supply that can handle up to 60 watts of power.

  • Power (Watts): 60W
  • Number of Outputs: 2
  • Current - Output (Max): 2A
  • Voltage - Input: 9V and 36V
  • Voltage - Output 1: 15V
  • Voltage - Output 2: -15V
  • Applications: ITE (Commercial)
  • Package / Case: 6-DIP Module
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO protection
  • Efficiency: 91%
